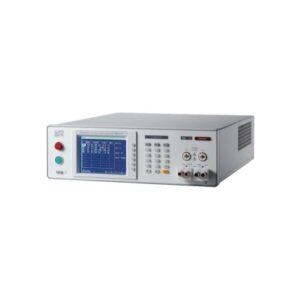

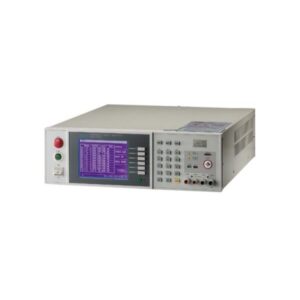

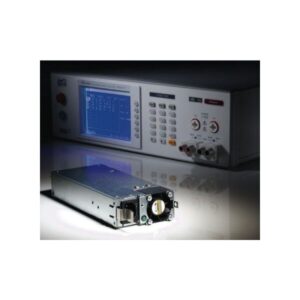

전기 안전 분석기 19032/19032-p

측정기능 : ACWV/DCWV/IR/GB/LC
출력전압 : DC: 6kV / AC: 5kV
전류분해능 : AC : 1μA / DC: 0.1μA
절연저항 : 0.1MΩ-50GΩ
인터페이스 : 9pin D-sub I/O control / RS-232 / GPIB

카타로그

견적요청

측정기능

ACWV/DCWV/IR/GB/LC

출력전압

DC: 6kV / AC: 5kV

전류분해능

AC : 1μA / DC: 0.1μA

절연저항

0.1MΩ-50GΩ

인터페이스

9pin D-sub I/O control / RS-232 / GPIB

주요특징

Chroma 19032

· ACWV/DCWV/IR/GB/LC 5가지 계측기를 하나로
· 최대 20A까지 기능 테스트 · 프로그래밍 가능한 전압 출력 및 한계값
· OSC 개방/단락 점검 · 플래시오버 감지
· 인체 보호 회로
· 다중 스캔 장치는 동적 누설 전류 테스트를 지원합니다
· 표준 RS232 인터페이스 · 옵션 GPIB 인터페이스
· 대형 LCD 패널 · 전면 패널 잠금 기능
· 지원 PC 소프트웨어
· CE 인증 Chroma

19032-P

· 500VA 출력
· AC 100mA 출력
· 최대 40A까지 접지 연결
· EN50191 준수, 플로팅 출력
· USB TMC와 호환되는 USB 인터페이스
· GFI 인체 보호 회로
· CE 인증

제품사양

Specifications
Model	19032	19032-P
Mode	ACWV/DCWV/ IR/ GB/ LC
Withstanding Voltage Test
Output Voltage	DC: 0.05-6kV ; AC: 0.05-5kV
Load Regulation	± (1% of reading+5V)	± (2% of setting+0.1% of full scale)
Voltage Regulation	2V
Voltage Accuracy	± (1% of reading +	± (2% of setting +
	0.1% of full scale)	0.1% of ull scale)
Cutoff Current	DC: 12mA ; AC: 40mA	DC: 25mA ; AC: 100mA
Current Resolution	0.1 µA DC ; 1 µA AC
Current Accuracy	±(1% of reading +	±(2% of reading +
	0.2% of full scale)	0.5% of range)
Output Frequency	50Hz/60Hz
Test Time	0.3-999 sec., continue
Ramp Time	0.1-999 sec, Off
Fall Time	0.1-999 sec, Off
Waveform	Sine wave
Insulation Resistance Test
Output Voltage	DC: 0.05-1kV	DC: 0.05-3kV
Voltage Resolution	2V
Voltage Accuracy	± (1% of reading +	± (2% of reading +
	0.5% of full scale)	0.2% of full scale)
IR Range	0.1MΩ-50GΩ
Resistance	0.1MΩ
Resolution
Resistance	5% typical
Accuracy
Ground Bond Test
Output Current	ACC: 1-30A	AC: 3-40A
Current Accuracy	±(1% of setting + 1% of full	±(2% of setting +
	scale)	0.1% of full scale)
GR Range	10mΩ-510mΩ
Resistance	0.1mΩ
Resolution
Resistance	± (1% of reading +	± (2% of reading +
Accuracy	0.1% of full scale)	0.1% of full scale)
Test Method	4 wires
Flashover Detection
Setting Mode	Programmable setting
Detection Current	AC: 20mA ; DC: 10mA
Secure Protection Function
Ground Fault	–	0.5mA ± 0.25mA AC
Interrupt
Floating Output	–	<3mA,
to ground		front output only (meet EN50191)
Panel Operation	Present password
Lock
Interlock	YES
GO/NG Judgment Window
Indication,Alarm	GO: Short sound,Green LED
	NG: Long sound, Red LED
Data Hold	Least tests data memories
Memory Storage	50 setups with up to 100 groups recall
Interface
Interface	9 pin D-sub I/O control / RS-232 / GPIB (optional)
General
Operation	Temperature: 0˚C-40˚C, Humidity: 20%-80% RH
Environment
Power Consumption	No load: < 100 W With rated load: 800 W	No load: < 100W Rated load: 1000W
		Maximum load: 1200W
Power	90-132Vac or 180-264Vac, 47-63Hz
Requirements
Dimension	133 x 430 x 470 mm /	133 x 430 x 500 mm /
(H x W x D)	5.24 x 16.93 x 18.66 inch	5.22 x 16.93 x 19.69 inch
Weight	25.5 kg / 56.17 lbs	24 kg / 52.86 lbs
Cetification	CE	CE

Model	A190305-A190350 * (6000-04~08)
Support Mode	ACWV/DCWV/IR/LC
DUT Input Power	AC: max. 300V / 10A / 20A
Capacity
Short Protection	20A, 250V fuse for DUT shorted

Measurement Mode
Input Characteristic	DC-1MHz Input Impedance: 1M//20pF

Measurement Mode

Normal, Reverse, Single Fault
Normal, Single Fault Reverse

Measurement Devices	UL 544 NP, UL 544 P, UL 1563, UL
(Five measure device)	60601-1, IEC60601-1, UL 3101-1, UL/IEC 60950, UL 1950-U1, UL 2601-U1, IEC60990
Probe Connection	Line to Ground, Line to P2, P1 to P2
HI-LO Limit
LC HI-LO Limit	0-9.99mA, 1µA resolution
Current HI-LO Limit	0-19.99Amp*
VA HI-LO Limit	0-4400VA
VA Resolution	0.1VA

Model	A190350 (6000-08)
Special Functions	LC DC Measurement U1, U2 (UL-1950), Hot Swap
