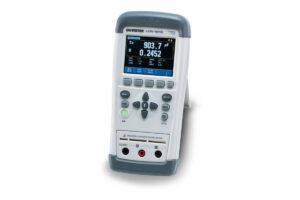

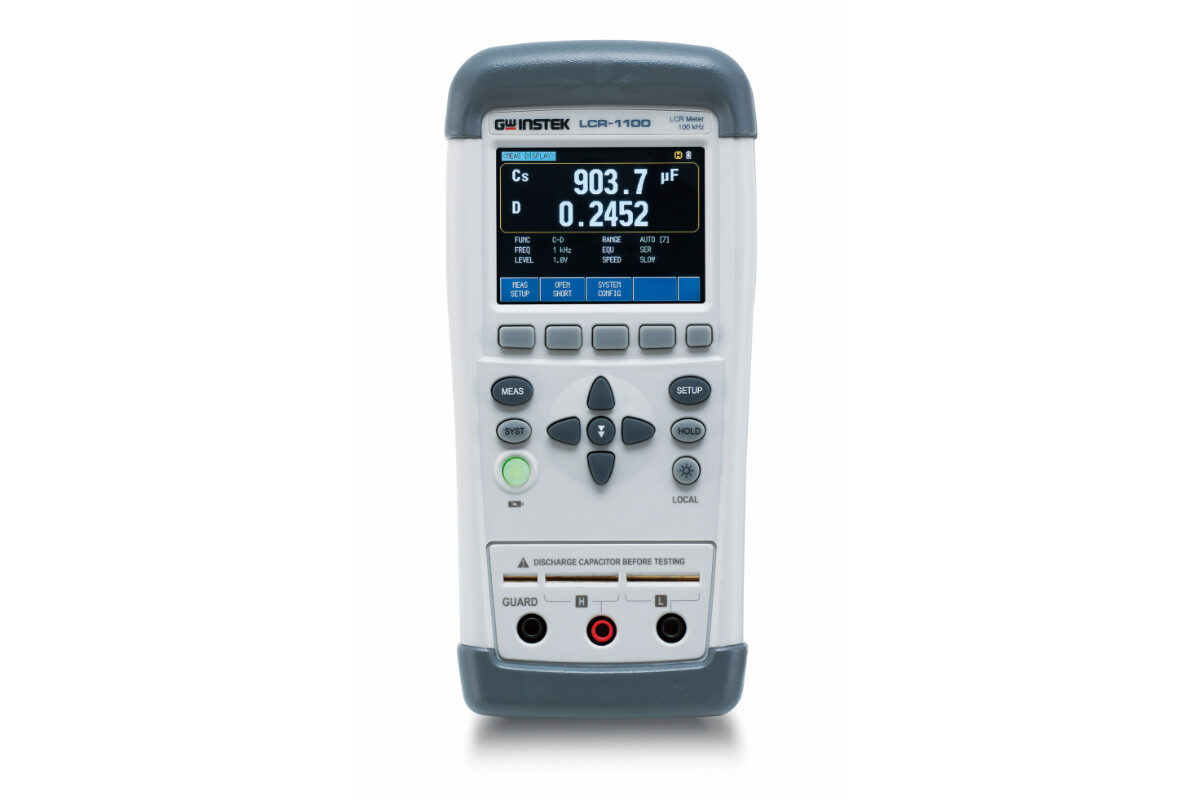

| Model |
LCR-1100 |
LCR-1010 |
| TEST FREQUENCY |
| Selection |
50Hz/100Hz/120Hz/1k/2k/10k/50k/100kHz |
50Hz/100Hz/120Hz/1k/2k/10kHz |
| FULL SCALE |
| Main Display |
50,000 counts |
| Sub Display |
50,000 counts |
| CAPACITANCE ( C ) and DISSIPATION ( D ) |
| C Display Range |
1pF ~ 50mF depends on the selected test frequency |
| C Best Accuracy |
±(0.2% rdg + 2 counts) ~ ±(3.0% rdg + 10 counts) |
| C Resolution |
0.001pF ~ 0.001mF depends on selected range |
| D Accuracy (De) |
0.002 ~ 0.03 depends on the selected test frequency & range |
| INDUCTANCE ( L ) and QUALITY FACTOR ( Q ) |
| L Display Range |
0.5μH ~ 1000H depends on the selected test frequency |
| L Best Accuracy |
±(0.2% rdg + 2 counts) ~ ±(2.5% rdg + 10 counts) |
| L Resolution |
0.001μH ~ 0.1H depends on selected range |
| Q Accuracy (Qe) |
0.002 ~ 0.08 depends on the selected test frequency & range |
| IMPEDANCE ( Z ) and PHASE ANGLE ( θ ) |
| Z Display Range |
0.05Ω ~ 10MΩ depends on the selected test frequency |
| Z Best Accuracy |
±(0.2% rdg+ 2 counts) ~ ±(3.0% rdg + 20 counts) |
| Z Resolution |
0.0001Ω ~ 0.001MΩ depends on selected range |
| θ Accuracy (θe) |
0.2° ~ 2°depends on the selected test frequency & range |
| ESR and ø |
|
ESR is equal to the series equivalent resistance (Rs) |
| Accuracy Formula |
Rse = ± Xx * øe ; XX =2πfLx or 1/2πfCx ; øe =θe * π/180 |
|
Parallel equivalent resistance |
| Accuracy Formula |
Rpe = ± Rp * øe / De øe |
| DC RESISTANCE |
| Display Range |
0.05Ω ~ 10MΩ |
| Best Accuracy |
±(0.2% rdg+ 2 counts) ~ ±(3.0% rdg + 5 counts) |
| Resolution |
0.0001Ω ~ 0.001MΩ depends on selected range |
| MEASUREMENT CIRCUIT |
Parallel or Series selectable |
| AUTO LCZ MODE |
Automatically identifies and measures the DUT when the meter is switch on |
| SORTING MODE |
±1%,±5%,±10%,±20%, Input% |
| OTHER FUNCTIONS |
Auto range, Backlight, Data hold, Zero, Auto power off |
| DISPLAY |
2.8 Color LCD display (touch operation available) |
| INTERFACE |
USB (type C) |
| POWER SOURCE |
Rechargeable lithium battery(8.4V) |
| DIMENSIONS & WEIGHT |
90(W) × 195(H) × 41(D) mm, Approx. 380g |
