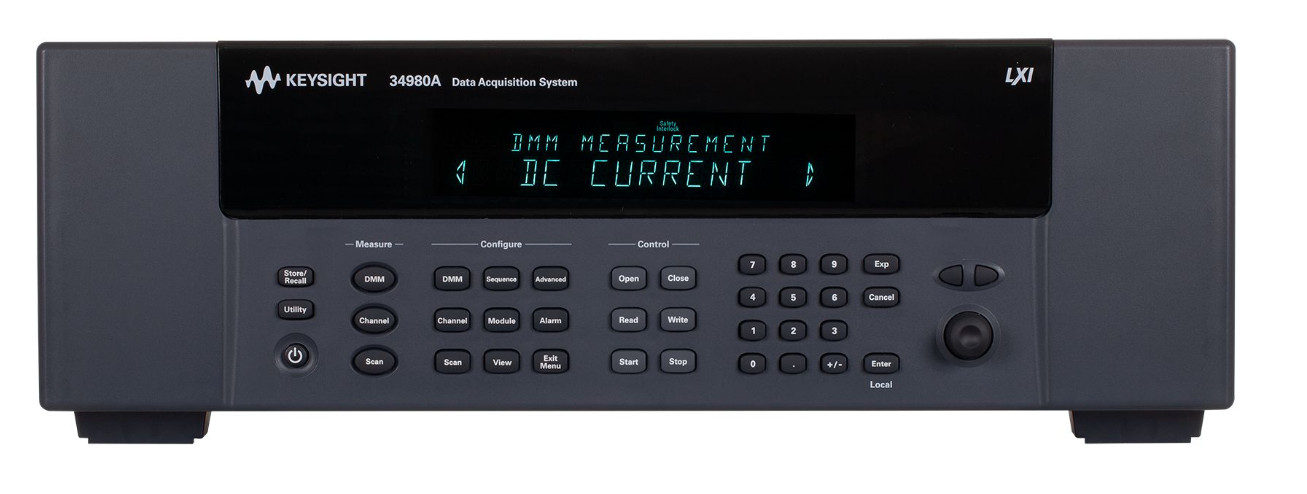

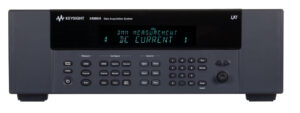

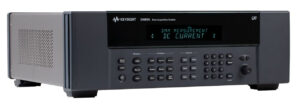

34980A 다기능 스위치/측정 장치

34980A 다기능 스위치/측정 장치

  • 최대 스캔속도 : 1000ch/sec
  • 최대 대역폭 : 45MHz
  • 최대 전압 : 300V
  • 최대 전류 : 7A
  • 슬롯 : 7slot
카타로그
매뉴얼
견적요청

Max Speed(ch/sec)

1000 ch/sec

Max BW (MHz)

45 MHz

Max volts

300 V

Max amps

7 A

slot

8 slot

주요특징
  • 34980A 다기능 스위치/측정 장치란?

내장형 DMM과 21개의 플러그인 모듈이 있는 8슬롯 모듈러 메인프레임(50GHz까지 스위칭, 디지털 I/O, D/A 컨버터, 카운터/토털라이저 기능)

  • 34980A 전용 모듈
Module Description Max volts Switch/Carry current BW (MHz) Scan ch/sec Thermal offset Comments
Multiplexer modules
34921A 40-channel armature multiplexer w/low thermal offset ±300 V 1A / 2A 45MHz 100 < 3 µV Temperature reference; 4 current channels; Config as 2- or 4-wire
34922A 70-channel armature multiplexer ±300 V 1A / 2A 25MHz 100 < 3 µV Config as 2- or 4-wire
34923A 40/80-channel reed multiplexer ±150 V 0.5A / 1.5A 45MHz 500 < 50 µV Config as 1-, 2- or 4-wire
34924A 70-channel reed multiplexer ±150 V 0.5A / 1.5A 25MHz 500 < 50 µV Config as 2- or 4-wire
34925A 40/80-channel optically isolated FET multiplexer ±80 Vpeak 0.02A 1MHz 1000 < 3 µV Config as 1-, 2- or 4-wire
Matrix modules
34931A Dual 4×8 armature matrix ±300 V 1A / 2A 30MHz 100 < 3 µV Backplane expandable
34932A Dual 4×16 armature matrix ±300 V 1A / 2A 30MHz 100 < 3 µV Backplane expandable
34933A Dual/Quad 4×8 reed matrix ±150 V 0.5A / 1.5A 30MHz 500 < 50 µV Backplane expandable; Config as 1- or 2-wire
34934A Quad 4×32 reed matrix ±100 Vpeak 0.5A / 0.5A 20MHz 500 < 50 µV Row expansion kit; Config as 1- or 2-wire
General-purpose modules
34937A 28-channel Form C and 4-channel Form A ±300 V
±250 VAC		 1A/2A
5A/7A		 10MHz N/A < 3 µV
34938A 20-channel 5-amp Form A ±250 VAC 5A/7A 1MHz N/A < 3 µV
34939A 64-channels Form A ±100 Vpeak 1A/2A 10MHz N/A < 3 µV
Module Description Insertion loss Isolation Freq range VSWR Input impedance Comments
RF and microwave modules
34941A Quad 1×4 50 ohm 3 GHz RF multiplexer 0.6 dB > 58 dB 3 GHz < 1.25 50 Ω @ 1 GHz
34942A Quad 1×4 75 ohm 1.5 GHz RF multiplexer 0.6 dB > 60 dB 1.5 GHz < 1.35 75 Ω @ 1 GHz
34945A / 34945EXT Microwave switch/attenuator driver Can drive up to 64 external switch coils; 32 SPDT switches, 8 multiport switches, 8 attenuators or your own combination.
Expand with additional 34945EXTs
34946A Dual 1×2 SPDT terminated microwave switch < 0.42 dB
< 0.69 dB
< 0.8 dB		 > 85 dB
> 67 dB
> 60 dB		 4 GHz
20 GHz
26.5 GHz		 < 1.15
< 1.30
< 1.6		 50 Ω Specs listed respectively for @ 4 GHz / @ 20 GHz / @ 26.5 GHz
34947A Triple 1×2 SPDT unterminated microwave switch < 0.42 dB
< 0.69 dB
< 0.8 dB		 > 85 dB
> 67 dB
> 60 dB		 4 GHz
20 GHz
26.5 GHz		 < 1.15
< 1.30
< 1.6		 50 Ω Specs listed respectively for @ 4 GHz / @ 20 GHz / @ 26.5 GHz
Module Description Comment
System control modules
34950A 64-bit digital I/O with memory and counter Eight 8-bit digital I/O channels with programmable polarity, thresholds up to 5 V, with handshaking protocols, and pattern memory. Two 10 MHz frequency counter and programmable clock output to 20 MHz
protocols, and pattern memory. Two 10 MHz frequency counter and programmable clock output to 20 MH
34951A 4-channel isolated D/A converter with waveform memory Output DC voltage up to ±16 V or DC current up to ±20 mA. Output waveforms with a 200 kHz update rate and 16-bit resolution. Use on-board memory to create point-to-point waveforms with > 500,000 points.
34952A Multifunction module with 32-bit DIO, 2-ch D/A, and totalizer Four 8-bit digital I/O channels, two ±12 V analog outputs, and a 100 kHz gated totalizer.
34959A Breadboard component module Create custom designs with access to +12 V and +5 V supplies, 16 GPIO ports, 4 Analog Bus drivelines,
and 28 relay drivelines; or use the 4 Analog Bus drivelines as additional general-purpose relay drivelines (see Internal DMM/Analog Bus ratings).
제품사양
Item Details
Scanning Inputs Analog: 34921A, 34922A, 34923A, 34924A, 34925A multiplexer channels
Digital: 34950A/52A digital in and totalize
Scan Triggering Source Interval, external, button press software, or on monitor channel alarm
Scan Count 1 to 50,000 or continuous
Scan Interval 0 ~ 99 hours; t ms step size
Channel Delay 0 to 60 seconds per channel; 1 ms step size
External Trigger Delay < 2 ms. With monitor on < 200 ms
External Trigger Jitter < 2 ms
Analog Inputs Hi, Lo, or Hi + Lo evaluated each scan
Digital Inputs 34950A/52A digital in maskable pattern match or state change
Frequency and Totalize 34950A/52A: Hi limit only
Monitor Channel Alarm Evaluated each reading
Alarm Outputs 4 TTL compatible. Selectable TTL logic Hi or Lo on fail
Latency 5 ms (typical)
Type Volatile
Readings 500,000 with timestamp, readable during scan
States 5 instrument states with user label
Alarm Queue Up to 20 events with channel number, reading, and timestamp
Per-Channel Scaling Individual Mx+B scaling and calculated real-time min/max/average
Power Fail Recovery Saves switch states
Relay Maintenance Counts each relay closure and stores on module. User resettable
Real-Time Clock Battery-backed, 20-year typical life
Power Supply Universal 100 Vac to 240 Vac
Power Line Frequency 50 – 60 Hz ± 10% automatically sensed
Power Consumption 150 VA
Operating Environment • 0 – 55°C, 2000 m, maximum humidity is 80% RH at 40˚C and decreases linearly to 37% RH at 55˚C
• IEC 60664-1 pollution degree 1 or 2
• Refer to 34980A User’s Guide, Chapter 4, Module Considerations section for details of Environmental Operating Limits (current and power dissipation) for the Plug-In Modules in Pollution degree 1 or 2 environments.
Storage Environment -40°C to 70°C
액세서리
악세서리 모델명 상세설명
Rackmount Kit for 34980A Y1130B Rackmount kit for forward or reverse mounting (requires additional rail kit)
Verification and Diagnostic Tools Y1131A Verification and diagnostic tools for 34980A mainframe and modules
Module Extender for 34980A Y1132A Extends cable to locate module outside the mainframe
SMA Extender 8710-2576 For connecting SMA connectors
Multiplexer Terminal Blocks 3492xT Terminal blocks for discrete wiring, supports 20 AWG wires for 100 connections
Matrix and GP Terminal Blocks 3493xT Terminal blocks for matrix and general-purpose (GP) applications
Measurement and Control Terminal Blocks 3495xT Terminal blocks for measurement and control systems
Row Expansion Cables for 34934C and 34934T Y1134A Row expansion cables, 30Vrms, 60Vdc, 3A max, no transients
50-pin Dsub, M/F Twisted Pair with Shield Cable (1.5 m) Y1135A 1.5 m cable, 300V, 3A, 1000Vpk transients max
50-pin Dsub, M/F Twisted Pair with Shield Cable (3 m) Y1136A 3 m cable, 300V, 3A, 1000Vpk transients max
78-pin Dsub, M/F Twisted Pair with Shield Cable (1.5 m) Y1137A 1.5 m cable, 300V, 1A, 750Vpk transients max
78-pin Dsub, M/F Twisted Pair with Shield Cable (3 m) Y1138A 3 m cable, 300V, 1A, 750Vpk transients max
Solder Cup Connector Kit for 50-pin Dsub Female Y1139A 50-pin Dsub female solder cup connector kit, 125 V, 7A max
Solder Cup Connector Kit for 78-pin Dsub Female Y1140A 78-pin Dsub female solder cup connector kit, 60V, 3A max
Solder Cup Connector Kit for 50-pin Dsub Male Y1141A 50-pin Dsub male solder cup connector kit, 125 V, 5A max
Solder Cup Connector Kit for 78-pin Dsub Male Y1142A 78-pin Dsub male solder cup connector kit, 60V, 5A max
External Driver for 34945A 34945EXT One required for each 64 coils, holds 4 distribution boards. Connects via Y1157A-Y1159A cable kits
Distribution Board for 8 N181x SPDT Switches Y1150A Distribution board for 8 N181x SPDT switches
Distribution Board for Multiport/Matrix Switches Y1151A For two 87104x/106x L7x0xx multiport or 87406B matrix switches
Distribution Board for One 87204x/206x Switch and Two N181x Switches Y1152A Distribution board for one 87204x/206x or 87606B switch and two N181x switches
Distribution Board for Step Attenuators Y1153A Distribution board for two 84904/5/6/7/8 or 8494/5/6 step attenuators
Distribution Board for Transfer Switches and N181x Switches Y1154A Distribution board for two 87222, L7222C transfer switches and six N181x SPDT switches
Distribution Board with Generic Screw Terminals for 16 Switch Coils Y1155A Distribution board with screw terminals for driving 16 switch coils
9-to-10 Pin Cable Kit for Y1150A, Y1152A, Y1154A Y1157A Supplies to build 4 cables for Y1150A, Y1152A, Y1154A
10-to-10/10-to-14 Pin Cable Kit for Y1153A, Y1154A Y1158A Supplies to build 2 cables for Y1153A, Y1154A
6-to-16 Pin Cable Kit for Y1150A/51A/52A/53A/54A/55A Y1159A Supplies to build 2 cables for Y1150A/51A/52A/53A/54A/55A
10 Pack of J-Type Thermocouples 34307A 10 pack of J-type thermocouples
5 Pack of 10 kΩ Thermistors 34308A 5 pack of 10 kΩ thermistors
