EMI 솔루션 패키지

EMI 솔루션 패키지

  • EMI 방사 테스트 패키지
  • EMI 방사/전도 테스트 패키지
  • EMI 전도 테스트 패키지
  • EMS 방사 테스트 패키지
매뉴얼
견적요청
주요특징

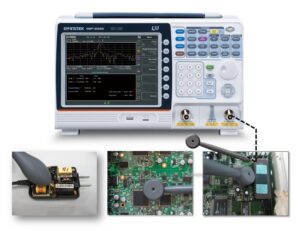

• EMI 방사 테스트 패키지 : 스펙트럼 분석기/ EMI 니어 필드 프로브 세트/ DC 블럭/ 과도 전류 리미터

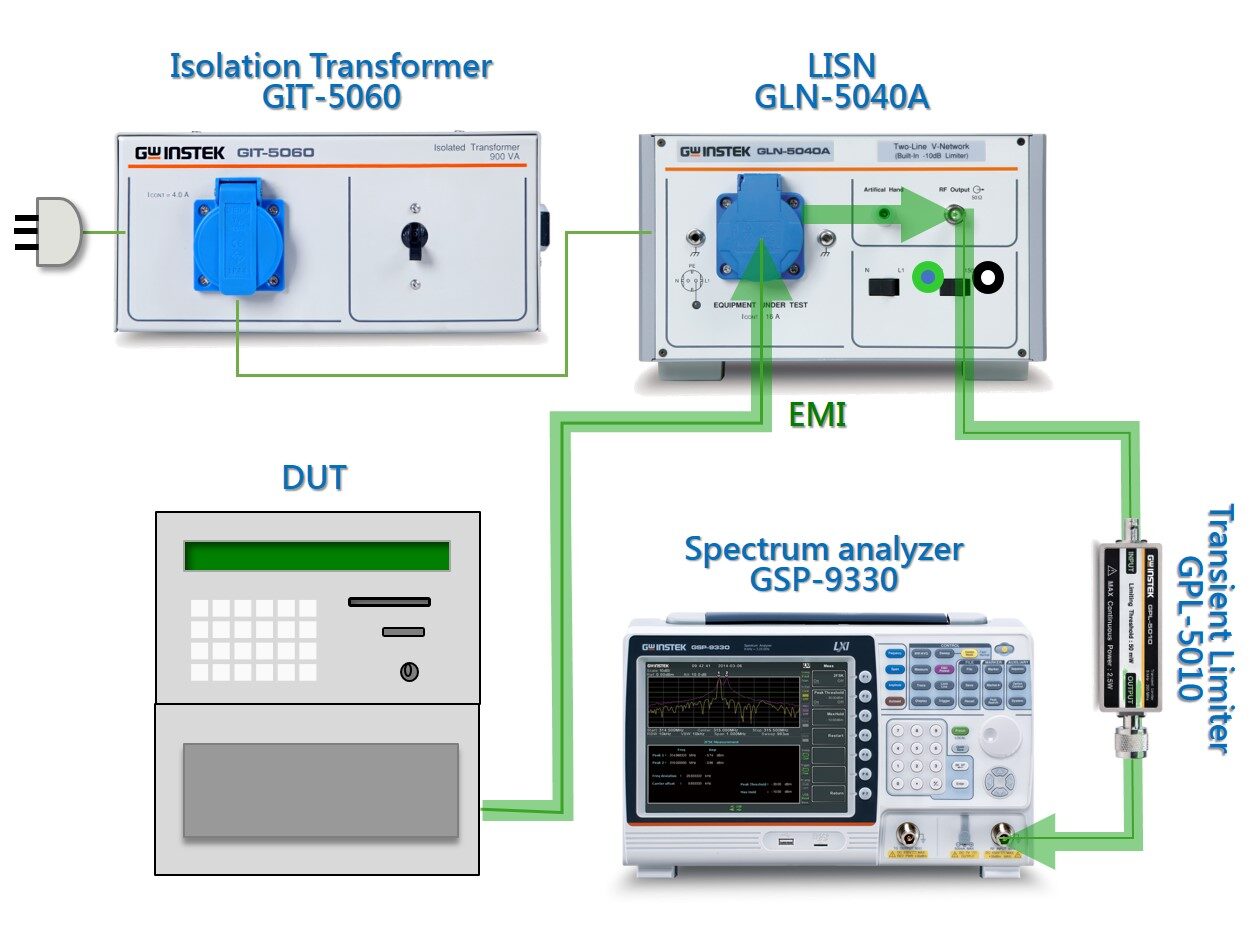

• EMI 방사/전도 테스트 패키지 : 스펙트럼 분석기/ EMI 니어 필드 프로브 세트/ DC 블럭/ LISN/ 절연 변압기/ 과도 전류 리미터

• EMI 전도 테스트 패키지 : 스펙트럼 분석기/ LISN/ 절연 변압기/ 과도 전류 리미터

• EMS 방사 테스트 패키지 : 스펙트럼 분석기(트랙킹 제너레이터 포함)/ EMI 니어 필드 프로브 세트

제품사양
GSP-9330 specifications
Go to check GSP-9330 specifications



GKT-008 specifications
PR-01 PR-02
Frequency Range 150kHz to 30 MHz FrequencyRange 30MHzto 3GHz
Insertion Loss S21 / Frequency Response 5dB / -3.6 dB (Avg.) InsertionLoss S21 / Frequency Response 10dB / -13.5 dB (Avg.)
Deviation of Insertion Loss ±1dB Deviationof Insertion Loss ±3dB
Connector 50Ω (SMA) Connector 50Ω (SMA)
Input Resistance 10MΩ InputResistance 1MΩ
Rated Voltage 300VAC RatedVoltage 50VDC
ANT-04 ANT-05
Frequency Range 30MHz to 3 GHz FrequencyRange 30MHzto 3GHz
Correction Factor / Frequency Response 10dB / -26.5 dB (Avg.) CorrectionFactor / Frequency Response 10dB / -26.5 dB (Avg.)
Deviation of Correction Factor ±4dB Deviationof Correction Factor ±4dB
Connector 50Ω (SMA ) Connector 50Ω (SMA)
Maximum Input Power 0.5W MaximumInput Power 0.5W



GLN-5040A Two-LineV-Network specifications
Frequency Range 9kHz to 30MHz
Circuit Type (50uH + 5Ω) // 50 Ω, V type
Test Circuit Phase Number Single phase
AC Voltage Range 0 ~ 240V AC + 10%
AC Frequency Range 50 ~ 60 Hz ±5%
DC Voltage Range 0 ~ 50V DC
Maximum Permitted Current(Continuous) Country-Specific Connector Models Refer to Figure 1 Model1 Model2 Model3 Model4
Germany United Kingdom China/Australia USA/Japan
(Schuko connector)
16A 13A 10A 15A
High Pass Filter (Alternative)   150 kHz
Voltage Division Factor between EUT and Measuring Receiver Port 10 dB
Response Threshold of Built-In Pulse Limiter 130 dBuV
RF Output BNC (F) / 50Ω
Artificial Hand Function Embodied
EUT power supply Interface German Standard Power Supply Socket
Operating Temperature 5 ∘C to 45∘ C
Storage Temperature -40 ∘C to 70∘ C
Dimensions / Weight 338mm (L) x 237mm (W) x 133mm (H) / 4.2 Kg
Certification EN61010-1:2010; EN61326-1:2013; EN61000-3-2:2014; EN61000-3-3:2013





GPL-5010 specifications
Frequency Range 9kHz to 200MHz
Threshold Value Limit 50mW (17 dBm)
Input / Output Impedance 50Ω
Input Connector BNC (F)
Output Connector N-type (M)
Maximum Input Range Continuous Power : 2.5W (34dBm)
Pulse Power : 10 kW (10us)
DC Voltage : ±12V
Insertion Loss <2 kHz >30 dB
9kHz to 50MHz 10dB±0.5dB
50MHz to 200MHz 9.5dB~ 12.2dB
<6 kHz , >400MHz >13dB
Operating Temperature 0 ∘C to 55∘ C
Storage Temperature -40 ∘C to 80∘C
Dimensions / Weight 18mm(L) x 44mm(W) x 23mm(H) / 92 g
Certification EN61010-1:2010; EN61326-1:2013; EN61000-3-2:2014; EN61000-3-3:2013
액세서리
패키지 구성
GSP-9330 Spectrum Analyzer : Power Cord, Certificate of Calibration, CD-ROM (with User Manual, Programming Manual, SpectrumShot Software, SpectrumShot Quick Start Guide & IVI Driver)
GKT-008 EMI Probe Set : PR-01, PR-02, ANT-04, ANT-05
GPL-5010 Transient Limiter : User Manual，Warranty Card，Test Report，Adaptor BNC(M) to SMA(F)
GLN-5040A Two-Line-V-Network(LISN) : User Manual，Adaptor BNC(F) to N-type(M)，Cable BNC(M) to BNC(M)，German Standard Power Adaptor，Warranty Card，Test Report
ADB-008 DC Block : 50ohm，SMA(male)~SMA(female)，0.1MHz-8GHz
