| Accessories |
| Model number |
Description |
| N2870A-76A |

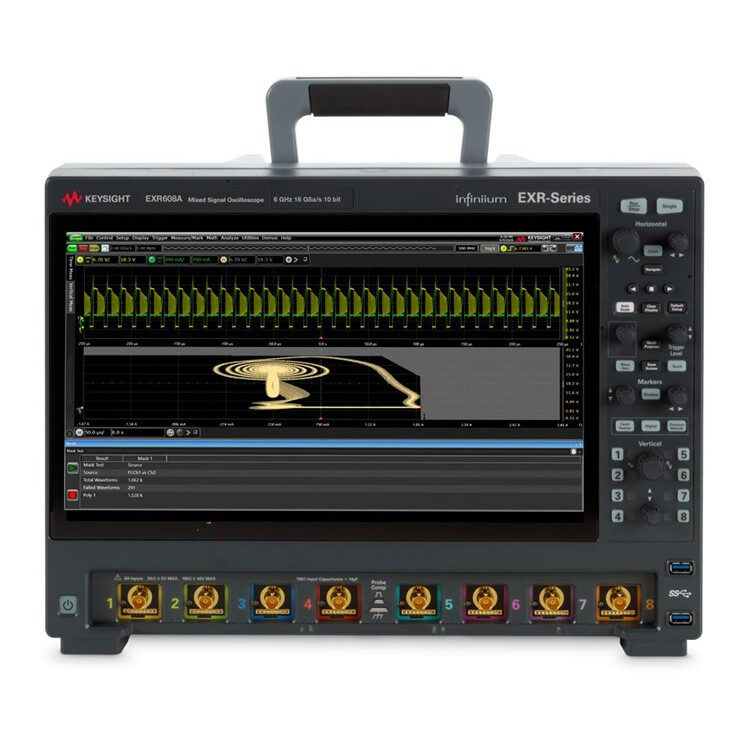

2.5 mm probe tip diameter for fine pitch component probing, easily replaceable spring-loaded or solid probe tip, 10-25 pF input C (high-Z, 10:1) covers wide range of scope input, 7 probes and 4 accessory kits available, N2873A shipped with Infiniium EXR series |
| PP0001A-03A |
Three passive probes that, with the help of an adapter, can achieve best-in-class bandwidth, voltage, and loading specifications, up to 1 GHz or 1.2 kV |
| N2756A |
Ships with EXR2MSO option. 16 flying leads with grabbers, ground leads, and other accessories. |
| N2795A-97A |
Up to 2 GHz, low cost, high impedance input (1 MΩ at DC), wide dynamic/offset range, headlight, -40 to +85 C of extreme temp range for chamber testing (N2797A) |
| N2750A-52A |
Up to 6 GHz, 200 kΩ input, InfiniiMode for Diff, SE, CM probing, built-in multifunction scope control, headlight |
| DP0001A |
400 MHz, 2 kV input, high CMRR >80 dB at DC, UL safety certified |
| N7026A |
150 MHz, 30 ARMS, 1 mV/div sensitivity clamp-on, AutoProbe interface |
| N2820A/21A |
3 MHz, measurable down to 100 μA AC/DC, provides wide dynamic range, ideal for capturing low level current flow |
| N7020A |
2 GHz, low noise for power rail noise measurement, high offset voltage, 50 kΩ loading at DC |
| N2744A |
Adapter for using legacy Tektronix TekProbe oscilloscopes. See data sheet for compatible models |
