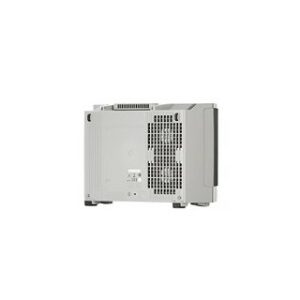

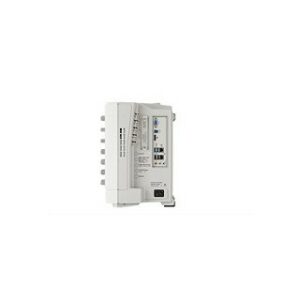

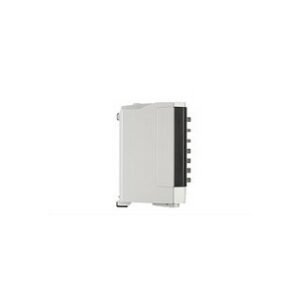

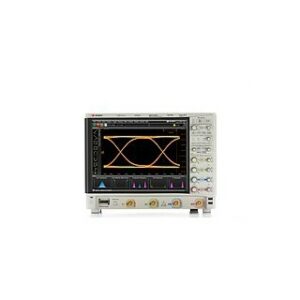

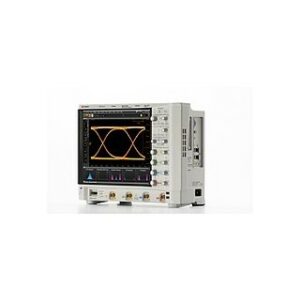

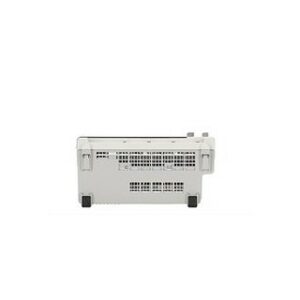

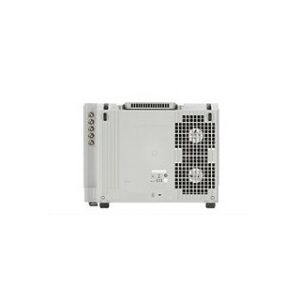

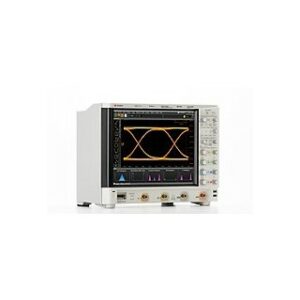

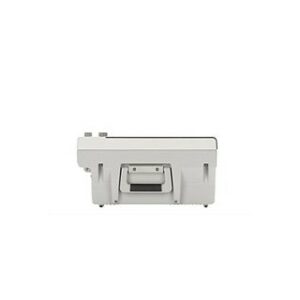

Infiniium S-시리즈 오실로스코프

제품사양

제품	DSOS054A / MSOS054A	DSOS104A / MSOS104A	DSOS204A / MSOS204A	DSOS254A / MSOS254A	DSOS404A / MSOS404A	DSOS604A / MSOS604A	DSOS804A / MSOS804A
Analog Channels	4
Digital Channels	2 + 16
Bandwidth	500 MHz (base)	1 GHz (base)	2 GHz (base)	2.5 GHz (base)	4 GHz (base)	6 GHz (base)	8 GHz (base)
Bandwidth Upgrade	1 GHz(Opt. DSOS1GBW-005)	N/A	N/A	N/A	N/A	N/A	N/A
	2 GHz(Opt. DSOS2GBW-005)	2 GHz(Opt. DSOS2GBW-010)	N/A
	2.5 GHz(Opt. DSOS2G5BW-005)	2.5 GHz(Opt. DSOS2G5BW-010)	2.5 GHz(Opt. DSOS2G5BW-020)
	4 GHz(Opt. DSOS4GBW-005)	4 GHz(Opt. DSOS4GBW-010)	4 GHz(Opt. DSOS4GBW-020)	4 GHz(Opt. DSOS4GBW-025)
	6 GHz(Opt. DSOS6GBW-005)	6 GHz(Opt. DSOS6GBW-010)	6 GHz(Opt. DSOS6GBW-020)	6 GHz(Opt. DSOS6GBW-025)	6 GHz(Opt. DSOS6GBW-040)
	8 GHz(Opt. DSOS8GBW-005)	8 GHz(Opt. DSOS8GBW-010)	8 GHz(Opt. DSOS8GBW-020)	8 GHz(Opt. DSOS8GBW-025)	8 GHz(Opt. DSOS8GBW-040)	8 GHz(Opt. DSOS8GBW-060)
MSO upgrade (license with MSO logic cable/probes)	N2901E
External trigger	Front Panel
Max. Sample Rate	20 GSa/s
Max. Memory Depth	800Mpts
Segmented Memory	Standard
Mask/limit testing	Standard
Serial protocol analysis	Standard: I2C, SPI, SR232/UART, JTAG, CAN, CAN-FD, LIN, FlexRay, SVID, USB 2.0, USB-PD, MIPI RFFE, eSPI, I2S, Ethernet 10/100BaseT, SpaceWire, SPMI, 100BASE-T1, Manchester, ARINC429, MIL-STD1553)
Waveform math	Add, Subtract, Multiply, Divide, Absolute Value, Average, Delay, Invert, Magnify / Duplicate, Max, Min, Versus XY, Versus XYZ Qualified, Differentiate, Integrate, Square, and Square Root math functions.
Display	15-inch capacitive touch
Waveform update rate	300,000 waveforms per second
Connectivity	USB 2.0 (host and device)
Connectivity	LAN

옵션명	옵션정보
DSOS000-821	Precision BNC to SMA adapters (qty 2)
N2808A	PrecisionProbe
N5384A	High-speed SDA and clock recovery
N5415B	InfiniiScan event identification software
N5400B	EZJIT+ Jitter Analysis SW for Infiniium 9000 and S series Oscilloscopes
N5430B	User defined function application
N5461B	Equalization Emulation software
N5465B	InfiniiSim Advanced Software
N8823B	EZJIT Complete vertical noise analysis software
E2681B	EZJIT Jitter Analysis Software
U1882B	Power measurement analysis software
N8833B	Crosstalk Analysis Tool for Infiniium S-Series Oscilloscopes
N8825B	10/100 Ethernet Protocol Triggering and Decode
N8827B	Pulse Amplitude Modulation Tool
N5391B	I2C/SPI Protocol Decode with Triggering
N5462B	RS-232/UART triggering and decode application
N5463B	PCI-Express triggering and decode application
N5464B	USB 2.0 Protocol Decode Software with Triggering
N8800B	I2C. SPI. RS-232 Protocol Decode Software with Triggering
N8802B	MIPI D-PHY protocol decode
N8805B	USB 3.0 protocol decode
N8807B	DigRF v4 protocol decode
N8808B	UniPro protocol decode
N8809B	LLI protocol decode
N8812B	SVID Protocol Triggering and Decode
N8817B	JTAG Protocol Decode for Infiniium 9K/90K scopes
N8819B	USB 3.0 SuperSpeed Inter-Chip (SSIC) protocol decode
N8820B	MIPI CSI-3 (M-PHY) protocol decode
N8824B	MIPI RFFE protocol decode
N8818B	Universal Flash Storage (UFS) protocol decode
N8801B	SATA/SAS protocol decode
N8821B	USB 3.1: 5 and 10 Gbps Protocol Triggering/Decode
N8837A	USB-PD Protocol Triggering and Decode
N8835A	eSPI and Quad eSPI Protocol Decode and Trigger
N8803C	CAN. LIN. FlexRay and CAN-FD Protocol Triggering and Decode
N8811A	I2S Protocol Triggering and Decode
N8842A	ARINC 429 and MIL-STD 1553 Protocol Triggering and Decode
N8843A	I3C Protocol Triggering and Decode Software
N8845A	SPMI protocol triggering and decode
N5392C	Ethernet compliance with Energy Efficient Ethernet
N5399D	HDMI 1.4 validation and compliance test
N5413C	DDR2 and LPDDR2 Compliance Test Application
N5416B	USB 2.0 Compliance Software
N5431B	XAUI compliance application
N5467C	User Defined Application for Infiniium and InfiniiVision oscilloscopes
N6465B	Compliance software eMMC
N6466B	MOST Compliance Application
N6467B	BroadR-Reach compliance software
U7231C	DDR3 and LPDDR3 Compliance Software
U7233B	DDR and LPDDR compliance software
N6462B	DDR4 and LPDDR4 compliance test software
U7236B	10GBASE-T Compliance Software
U7246B	SD UHS1 compliance software
N5459C	DDR Compliance Software Bundle
N8836A	OIF-CEI 56G Draft PAM-4 Measurements
U7250A	MIPI C-PHY Compliance
N8890A	Compliance Application Switch Matrix
N6474A	ONFI Compliance Test
E6960A	1000BaseT1 Transmitter Compliance Application
DSOS000-100	Includes 100 Mpts/CH Memory
DSOS000-200	Includes 200 Mpts/CH Memory
DSOS000-400	Includes 400 Mpts/CH Memory
N8838A-1FP	External Mixer Assistant. fixed perpetual license
N2113A	인피니엄 S-시리즈 고해상도 오실로스코프 메모리 업그레이드
N2901E	인피니엄 9000 및 S-시리즈 오실로스코프의 DSO에서 MSO로 업그레이드

액세서리

악세사리 코드	악세사리 정보
N2832A	13GHz InfiniiMax III+ 시리즈 프로브 앰프
N7020A	전력 레일 프로브
N2790A	100 MHz 고전압 차동 프로브
N2795A	액티브 프로브. 1GHz
N2752A	InfiniiMode 6GHz 액티브 차동 프로브
N2751A	InfiniiMode 3.5GHz 액티브 차동 프로브
N2750A	InfiniiMode 1.5GHz 액티브 차동 프로브
N2791A	25-MHz 고전압 차동 프로브
N2818A	utoProbe가 포함된 200MHz 10:1 차동 프로브
N2819A	AutoProbe가 포함된 800MHz 10:1 차동 프로브
N2797A	극한 기온 액티브 프로브. 1.5GHz
N2796A	액티브 프로브. 2GHz
N2831A	8GHz InfiniiMax III+ 시리즈 프로브 앰프
N2830A	4GHz InfiniiMax III+ 시리즈 프로브 앰프
N2873A	Passive 프로브. 10:1. 500 MHz. 1.3 m
1130B	InfiniiMax 1.5 GHz 프로브
1131B	InfiniiMax 3.5 GHz 프로브
1134B	InfiniiMax 7 GHz 프로브
1168B	10 GHz InfiniiMax II 시리즈 프로브 앰프
1169B	12 GHz InfiniiMax II 시리즈 프로브 앰프
1132B	InfiniiMax 5 GHz 프로브
1147B	50MHz/15A AC/DC 전류 프로브
N2780B	2 MHz/500 Arms AC/DC 전류 프로브
N2893A	100 MHz/15A AC/DC 전류 프로브
N2876A	Passive Probe. 100:1. 1.5 GHz. 1.3 m
10073D	Passive Probe. 10:1. 500 MHz. 1.5 m
N2875A	Passive Probe. 20:1. 500 MHz. 1.3 m
N2874A	Passive Probe. 10:1. 1.5 GHz. 1.3 m
10070D	패시브 프로브. 1:1. 20 MHz. 1.5 m
10076C	100:1. 4 kV. 500-MHz 고전압 프로브
N7026A	AC/DC 고감도 클램프 고정 전류 프로브. 150MHz
N7042A	로고스키(Rogowski) AC 전류 프로브. 30MHz. 300A
N7040A	로고스키(Rogowski) AC 전류 프로브. 23MHz. 3000A
N2872A	Passive Probe. 10:1. 350 MHz. 1.3 m
N2871A	Passive Probe. 10:1. 200 MHz. 1.3 m
1146B	100kHz/100A 전류 프로브
N2805A	200-MHz 고전압 차동 프로브
N2804A	300-MHz 고전압 차동 프로브
N2782B	50 MHz/30 Arms AC/DC 전류 프로브
N2781B	10 MHz/150 Arms AC/DC 전류 프로브
N2783B	100 MHz/30 Arms AC/DC 전류 프로브
N2820A	3MHz/50uA 고감도 AC/DC 전류 프로브(2채널)
N2821A	3MHz/50uA 고감도 AC/DC 전류 프로브(1채널)
N2870A	Passive Probe. 1:1. 35 MHz. 1.3 m
N7041A	로고스키(Rogowski) AC 전류 프로브. 30MHz. 600A
