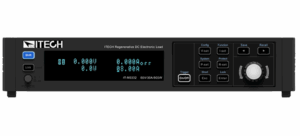

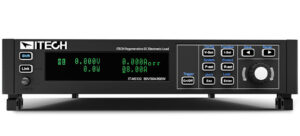

IT-M3300 Regenerative DC Electronic Load series

IT-M3300 Regenerative DC Electronic Load series

  • 최대 전압 : 600V
  • 최대 전류 : 30A
  • 최대 전력 : 800W
  • 에너지 회생 효율 : 88%
  • 전류 상승 최대 속도 : 1ms
카타로그
매뉴얼
견적요청

Max Voltage

600V

Max Current

30A

Max Power

800W

Efficiency

88%

Rise Speed Rate

1ms

주요특징

Product Features

Feature

♦ 1U half rack, high power density
♦ Battery discharge test
♦ High efficient power regeneration
♦ 8 operating modes ：CC/CV/CP/CR/CV+CC/CC+CR/CV+CR/CV+CC+CP+CR
♦ Supports synchronous control of up to 256 channels, implement synchronization or proportional tracking
♦ Parallel connection, up to 16 units
♦ High-speed measurement, keep 10 times / s update rate even connecting 16 stand-alone units
♦ Adjustable current rise/fall time
♦ List programming
♦ Various protection such as OCP/UCP/OVP/UVP/OPP, over heat protection, grid fault protection and fault storage, foldback,Power-off protection, sense abnormal protection
♦ Temperature measurement function, over temperature protection
♦ Automatic detection of power grid state to realize reliable grid connection
♦ Precharge function to prevent overshoot of DC loading current
♦ Anti-reverse protection function by optional IT-E118
♦ Five optional interfaces, supporting RS232, CAN, LAN, GPIB, USB_TMC, USB_VCP、RS485, analog and IO communication

제품사양
Model Voltage Current Power Resolution Accuracy Interface Size
IT-M3313 150V 12A 200W 10mV/1mA <0.03%+0.03%FS/ <0.1% +0.1%FS Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog ½ U
IT-M3332 60V 30A 800W 1mV/10mA <0.03%+0.03%FS/ <0.1% +0.1%FS Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog ½ U
IT-M3322 60V 30A 400W 1mV/10mA <0.03%+0.03%FS/ <0.1% +0.1%FS Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog ½ U
IT-M3312 60V 30A 200W 1mV/10mA <0.03%+0.03%FS/ <0.1% +0.1%FS Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog ½ U
IT-M3335 600V 3A 800W 10mV/1mA <0.03%+0.03%FS/ <0.1% +0.1%FS Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog ½ U
IT-M3325 600V 3A 400W 10mV/1mA <0.03%+0.03%FS/ <0.1% +0.1%FS Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog ½ U
IT-M3315 600V 3A 200W 10mV/1mA <0.03%+0.03%FS/ <0.1% +0.1%FS Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog ½ U
IT-M3334 300V 6A 800W 10mV/1mA <0.03%+0.03%FS/ <0.1% +0.1%FS Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog ½ U
IT-M3324 300V 6A 400W 10mV/1mA <0.03%+0.03%FS/ <0.1% +0.1%FS Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog ½ U
IT-M3314 300V 6A 200W 10mV/1mA <0.03%+0.03%FS/ <0.1% +0.1%FS Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog ½ U
IT-M3333 150V 12A 800W 10mV/1mA <0.03%+0.03%FS/ <0.1% +0.1%FS Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog ½ U
IT-M3323 150V 12A 400W 10mV/1mA <0.03%+0.03%FS/ <0.1% +0.1%FS Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog ½ U
