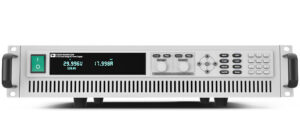

IT6500 Wide-range High-power DC Power Supply

IT6500 Wide-range High-power DC Power Supply

  • 최대 전압 : 1000V
  • 최대 전류 : 240A
  • 최대 전력 : 1800W
  • 분해능 : 1mV/1mA
  • 정확도 : ≤0.02%+30mV/ ≤0.1%+0.1%FS
카타로그
매뉴얼
견적요청

최대 전압

1000V

최대 전류

240A

최대 전력

1800W

분해능

1mV/1mA

정확도

≤0.02%+30mV/ ≤0.1%+0.1%FS

주요특징

제품 특징

♦ 마스터-슬레이브 모드에서 여러 전원 공급 장치의 병렬 연결을 지원하며 각 전원 공급 장치가 부하 전류를 균등하게 공유하도록 보장합니다. 확장 용량은 최대 30kW 출력입니다.

♦ 다양한 모드(CV/CC/CP) 지원, 독립적인 엣지 설정

♦ 상승 및 하강 시간 조절 가능

♦ 자동차 전력망을 위한 DIN 40839, ISO-16750-2, SAEJ1113-11, LV124 및 ISO2184 표준 전압 곡선 내장 *2

♦ 태양광 패널 I-V 곡선 시뮬레이션 기능 지원 *3

♦ LIST 모드 프로그래밍

♦ 가변 출력 임피던스 기능 *1

♦ 낮은 리플 및 노이즈

♦ 고해상도 및 고정밀도

♦ 다중 보호 기능 지원 (전원 공급 장치: OVP, OCP, OPP; Vsense 역방향 보호, 전원 차단 보호, 입력 저전압 보호)

♦ 원격 감지 기능

♦ 아날로그 제어 인터페이스

♦ USB/RS232/CAN/LAN 인터페이스 내장

*1 IT6500C 시리즈에만 이 기능이 있습니다.

*2 IT6500C 시리즈에만 이 기능이 있으며, IT6512 및 IT6513에는 DIN 40839, ISO-16750-2가 내장되어 있습니다.

*3 옵션 SAS1000 소프트웨어

제품사양



Model Voltage Current Power Resolution Accuracy Interface Size Inquiry
IT6512 80V 60A 1200W 1mV/1mA ≤0.02%+30mV/ ≤0.1%+0.1%FS RS232/USB/RS485 1U inquiry
IT6502D 80V 60A 800W 1mV/1mA ≤0.02%+30mV/ ≤0.1%+0.1%FS RS232/USB/RS485 1U inquiry
IT6517C 1000V 10A 1800W 100mV/1mA ≤0.05%+375mV ≤0.2%+10mA USB/RS232/CAN/LAN 2U inquiry
IT6516D 750V 15A 1800W 100mV/10mA ≤0.05%+300mV ≤0.2%+15mA USB/RS232/CAN/LAN 2U inquiry
IT6516C 750V 15A 1800W 100mV/10mA ≤0.05%+300mV ≤0.2%+15mA USB/RS232/CAN/LAN 2U inquiry
IT6515D 500V 20A 1800W 100mV/10mA ≤0.05%+200mV ≤0.2%+20mA USB/RS232/CAN/LAN 2U inquiry
IT6515C 500V 20A 1800W 100mV/10mA ≤0.05%+200mV ≤0.2%+20mA USB/RS232/CAN/LAN 2U inquiry
IT6514D 360V 30A 1800W 10mV/10mA ≤0.05%+135mV ≤0.2%+30mA USB/RS232/CAN/LAN 2U inquiry
IT6514C 360V 30A 1800W 10mV/10mA ≤0.05%+135mV ≤0.2%+30mA USB/RS232/CAN/LAN 2U inquiry
IT6513D 200V 60A 1800W 10mV/10mA ≤0.05%+100mV ≤0.2%+60mA USB/RS232/CAN/LAN 2U inquiry
IT6513C 200V 60A 1800W 10mV/10mA ≤0.05%+100mV ≤0.2%+60mA USB/RS232/CAN/LAN 2U inquiry
IT6512D 80V 120A 1800W 10mV/10mA ≤0.05%+30mV ≤0.2%+120mA USB/RS232/CAN/LAN 2U inquiry
IT6512C 80V 120A 1800W 10mV/10mA ≤0.05%+30mV ≤0.2%+120mA USB/RS232/CAN/LAN 2U inquiry
IT6513A 150V 30A 1200W 3mV/1mA ≤0.05%+30mV ≤0.2%+0.1%FS RS232/USB/RS485 1U inquiry
IT6513 150V 30A 1200W 3mV/1mA ≤0.05%+30mV ≤0.2%+0.1%FS RS232/USB/RS485 1U inquiry
IT6512A 80V 60A 1200W 1mV/1mA ≤0.02%+30mV/ ≤0.1%+0.1%FS RS232/USB/RS485 1U inquiry
IT6532D 80V 240A 6kW 10mV/10mA ≤0.05%+30mV ≤0.2%+240mA USB/RS232/CAN/LAN 4U inquiry
IT6532C 80V 240A 6kW 10mV/10mA ≤0.05%+30mV ≤0.2%+240mA USB/RS232/CAN/LAN 4U inquiry
IT6527D 1000V 10A 3kW 100mV/1mA ≤0.05%+375mV ≤0.2%+10mA USB/RS232/CAN/LAN 2U inquiry
IT6527C 1000V 10A 3kW 100mV/1mA ≤0.05%+375mV ≤0.2%+10mA USB/RS232/CAN/LAN 2U inquiry
IT6526D 750V 15A 3kW 100mV/10mA ≤0.05%+300mV ≤0.2%+15mA USB/RS232/CAN/LAN 2U inquiry
IT6526C 750V 15A 3kW 100mV/10mA ≤0.05%+300mV ≤0.2%+15mA USB/RS232/CAN/LAN 2U inquiry
IT6525D 500V 20A 3kW 100mV/10mA ≤0.05%+200mV ≤0.2%+20mA USB/RS232/CAN/LAN 2U inquiry
IT6525C 500V 20A 3kW 100mV/10mA ≤0.05%+200mV ≤0.2%+20mA USB/RS232/CAN/LAN 2U inquiry
IT6524D 360V 30A 3kW 10mV/10mA ≤0.05%+135mV ≤0.2%+30mA USB/RS232/CAN/LAN 2U inquiry
IT6524C 360V 30A 3kW 10mV/10mA ≤0.05%+135mV ≤0.2%+30mA USB/RS232/CAN/LAN 2U inquiry
IT6523D 200V 60A 3kW 10mV/10mA ≤0.05%+100mV ≤0.2%+60mA USB/RS232/CAN/LAN 2U inquiry
IT6523C 200V 60A 3kW 10mV/10mA ≤0.05%+100mV ≤0.2%+60mA USB/RS232/CAN/LAN 2U inquiry
IT6522D 80V 120A 3kW 10mV/10mA ≤0.05%+30mV ≤0.2%+120mA USB/RS232/CAN/LAN 2U inquiry
IT6522C 80V 120A 3kW 10mV/10mA ≤0.05%+30mV ≤0.2%+120mA USB/RS232/CAN/LAN 2U inquiry
IT6517D 1000V 10A 1800W 100mV/1mA ≤0.05%+375mV ≤0.2%+10mA USB/RS232/CAN/LAN 2U inquiry
IT6537D 1000V 20A 6kW 100mV/1mA ≤0.05%+375mV ≤0.2%+20mA USB/RS232/CAN/LAN 4U inquiry
IT6537C 1000V 20A 6kW 100mV/1mA ≤0.05%+375mV ≤0.2%+20mA USB/RS232/CAN/LAN 4U inquiry
IT6536D 750V 30A 6kW 100mV/10mA ≤0.05%+300mV ≤0.2%+30mA USB/RS232/CAN/LAN 4U inquiry
IT6536C 750V 30A 6kW 100mV/10mA ≤0.05%+300mV ≤0.2%+30mA USB/RS232/CAN/LAN 4U inquiry
IT6535D 500V 40A 6kW 100mV/10mA ≤0.05%+200mV ≤0.2%+40mA USB/RS232/CAN/LAN 4U inquiry
IT6535C 500V 40A 6kW 100mV/10mA ≤0.05%+200mV ≤0.2%+40mA USB/RS232/CAN/LAN 4U inquiry
IT6534D 360V 60A 6kW 10mV/10mA ≤0.05%+135mV ≤0.2%+60mA USB/RS232/CAN/LAN 4U inquiry
IT6534C 360V 60A 6kW 10mV/10mA ≤0.05%+135mV ≤0.2%+60mA USB/RS232/CAN/LAN 4U inquiry
IT6533D 200V 120A 6kW 10mV/10mA ≤0.05%+100mV ≤0.2%+120mA USB/RS232/CAN/LAN 4U inquiry
IT6533C 200V 120A 6kW 10mV/10mA ≤0.05%+100mV ≤0.2%+120mA USB/RS232/CAN/LAN 4U inquiry
