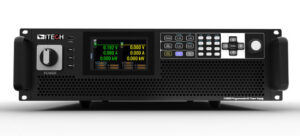

IT6600D Series High Power Programmable DC Power Supply

IT6600D Series High Power Programmable DC Power Supply

  • 최대 전압 : 2250V
  • 최대 전류 : 2000A
  • 최대 전력 : 420kW
  • 분해능 : 0.001V/0.001A
  • 정확도 : ≤0.02%+0.01%FS / ≤0.03%+0.03%FS
카타로그
매뉴얼
견적요청

최대 전압

250V

최대 전류

2000A

최대 전력

420kW

분해능

0.001V/0.001A

정확도

≤0.02%+0.01%FS / ≤0.03%+0.03%FS

주요특징

제품 특징

♦ 고전력 밀도, 3U에서 최대 42kW

♦ 3U 장치에 독립적인 듀얼 채널 설계, 채널은 직렬 또는 병렬 연결 가능

♦ 마스터-슬레이브 전류 공유, 병렬 연결 시 최대 10MW 출력

♦ 직관적인 GUI를 갖춘 5인치 터치 스크린

♦ 데이터 레코더 기능

♦ 오실로스코프 기능, 즉각적인 데이터 분석 및 저장

♦ CC/CV 우선순위

♦ 리스트 기능, 수천만 포인트의 동적 작동 조건 시뮬레이션

♦ 이중화(Redundancy) 기능, 각 단일 장치 또는 캐비닛의 상태를 확인하고 전체 출력을 보장하는 데 도움

♦ 내장 통신 인터페이스

  • USB (USB-TMC/USB-VCP)
  • LAN (Rawsocket/Modbus-TCP/Profinet/VNC/VXI-11/Web/Telnet)
  • CAN 2.0B (CANopen/CAN2.0)
  • 디지털 IO♦ 옵션 통신 인터페이스: GPIB/EtherCAT/Analog&RS232♦ 무료 PC 소프트웨어
제품사양



Model Voltage Current Power Resolution Accuracy Interface Size Inquiry
IT6642D-1200-200 1200V 200A 42kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 3U inquiry
IT6684D-1200-400 1200V 400A 84kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 15U inquiry
IT66126D-1200-600 1200V 600A 126kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 15U inquiry
IT66168D-1200-800 1200V 800A 168kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 27U inquiry
IT66210D-1200-1000 1200V 1000A 210kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 27U inquiry
IT66252D-1200-1200 1200V 1200A 252kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 27U inquiry
IT66294D-1200-1400 1200V 1400A 294kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 27U inquiry
IT66378D-1200-1800 1200V 1800A 378kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 37U inquiry
IT66420D-1200-2000 1200V 2000A 420kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 37U inquiry
IT6642D-1600-140 1600V 140A 42kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 3U inquiry
IT6684D-1600-280 1600V 280A 84kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 15U inquiry
IT66126D-1600-420 1600V 420A 126kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 15U inquiry
IT66168D-1600-560 1600V 560A 168kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 27U inquiry
IT66210D-1600-700 1600V 700A 210kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 27U inquiry
IT66252D-1600-840 1600V 840A 252kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 27U inquiry
IT66294D-1600-980 1600V 980A 294kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 27U inquiry
IT66336D-1600-1120 1600V 1120A 336kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 37U inquiry
IT66378D-1600-1260 1600V 1260A 378kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 37U inquiry
IT66420D-1600-1400 1600V 1400A 420kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 37U inquiry
IT6642D-2250-100 2250V 100A 42kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 3U inquiry
IT6684D-2250-200 2250V 200A 84kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 15U inquiry
IT66126D-2250-300 2250V 300A 126kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 15U inquiry
IT66168D-2250-400 2250V 400A 168kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 27U inquiry
IT66210D-2250-500 2250V 500A 210kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 27U inquiry
IT66252D-2250-600 2250V 600A 252kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 27U inquiry
IT66294D-2250-700 2250V 700A 294kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 27U inquiry
IT66336D-2250-800 2250V 800A 336kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 37U inquiry
IT66378D-2250-900 2250V 900A 378kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 37U inquiry
IT66420D-2250-1000 2250V 1000A 420kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 37U inquiry
IT66336D-1200-1600 1200V 1600A 336kW 0.001V/0.001A ≤0.02%+0.01%FS / ≤0.03%+0.03%FS USB/CAN/LAN/digital I/O port, optional GPIB/EtherCAT/Analog&RS232 37U inquiry
