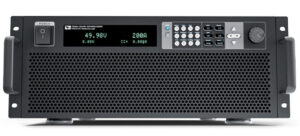

IT8400 High Performance DC Electronic Load series

IT8400 High Performance DC Electronic Load series

  • 최대 전압 : 1200V
  • 최대 전류 : 1350 A
  • 최대 전력 : 54 kW
  • 분해능 : 10 mV/ 40 μA
  • 정확도 : ±(0.05%+0.05%FS)
주요특징

IT8400 High Performance DC Electronic Load series

Product Features

♦ Max.Voltage : 1200V
♦ Current range: 1.5A~15,000 A
♦ Power extended to 600 kW through master-slave connection in parallel
♦ High-precision three current measurement ranges with resolution up to 40uA
♦ Fast double power loading capability (<3 s)
♦ 25kHz fast dynamic mode, current rising and falling time is adjustable
♦ Provide 8 working modes: CC, CV, CR, CP, CC+CV, CV+CR,CR+CC, CP+CC
♦ 1 kHz continuous sampling rate
♦ List programming
♦ The battery discharge function is used to test energy storage devices such as batteries and super capacitors
♦ CV loop speed is adjustable to match different power supplies
♦ 500 kHz voltage and current sampling rate
♦ Time measurement, OCP/OPP test short circuit simulation, automatic test
♦ Soft start and soft shutdown to prevent voltage fluctuations during on/off
♦ I-monitor function
♦ Full protection: OVP, UVP, OCP, OPP, OTP, current oscillation protection, current limit, power limit, reverse alarm, etc.
♦ Power-off retention memory function, recording up to 100 groups data
♦ Independent control, easy to maintain and install.
♦ Built-in standard LAN, USB, RS232, GPIB, CAN and analog, IO interface
♦ LabVIEW driver and SCPI protocol
제품사양

IT8400 High Performance DC Electronic Load series

Input 600V 1200V Height
6 kW IT8406-600-150 IT8406-1200-75 4u
12 kW IT8412-600-300 IT8412-1200-150 8u
18 kW IT8418-600-450 IT8418-1200-225 15u
24 kW IT8424-600-600 IT8424-1200-300 27u
30 kW IT8430-600-750 IT8430-1200-375 27u
36 kW IT8436-600-900 IT8436-1200-450 27u
42 kW IT8442-600-1050 IT8442-1200-525 37u
48 kW IT8448-600-1200 IT8448-1200-600 37u
54 kW IT8454-600-1350 IT8454-1200-675 37u
