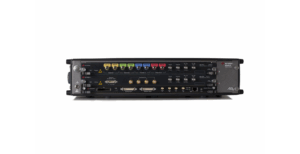

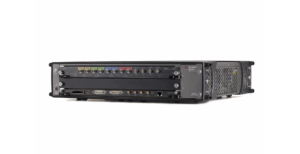

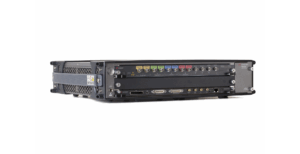

| Configuration |
| Product numbers |
Description |
Comments |
| M8195A-001 |
1 channel, 65 GSa/s, 2 GSa per module |
Including local start-up assistance and one 50 Ω termination for each channel |
| M8195A-002 |
2 channel, 65 GSa/s, 2 GSa per module |
| M8195A-004 |
4 channel, 65 GSa/s, 2 GSa per module |
| M8195A-16G |
Upgrade to 16 GSa per module |
Software license |
| M8195A-SEQ |
Sequencer functionality per module |
Software license |
| M8195A-FSW |
Fast switching per module |
Software license |
| M8195A-1A7 |
ISO 17025 report |
|
| M8195A-Z54 |
Z54 calibration report |
|
| M8195A-BU1 |
Pre-configured system including one M9505A 5-slot AXIe Chassis with USB Option and one M9537A AXIe Embedded PC Controlle |
|
| M8195A-BU2 |
Pre-configured system including one M9502A 2-slot AXIe Chassis with USB Option |
|
| M8195A-BU3 |
Pre-configured system including one M9502A 2-slot AXIe Chassis with USB Option and one M9537A AXIe Embedded PC Controller |
|
| M8197A |
Synchronization module for up to four M8195A modules |
Including four synchronization cables |
| M8195S |
Pre-configured Arbitrary Waveform Generator System including one M8197A |
In addition to the required modules, a local start-up assistance, one 50 Ω termination for each channel and an AXIe chassis with an embedded controller or external PC connectivity will automatically be added. |
| General characteristics M8195A |
| Sample rate |
53.76 GSa/s to 65.00 GSa/s |
| or 26.88 GSa/s to 32.50 GSa/s (sample rate divider = 2) |
| or 13.44 GSa/s to 16.25 GSa/s (sample rate divider = 4) |
| DAC resolution |
8 bits |
| Number of channels per M8195A module |
1, 2 or 4 (corresponds to option 001, 002, 004) |
| (number of channels is software upgradable via license key) |
| Upgrades options for M8195A |
| Product numbers |
Description |
Comments |
| M8195AU-U02 |
Upgrade from 1 ch. to 2 ch. |
Software license |
| M8195AU-U04 |
Upgrade from 2 ch. to 4 ch.4 |
Software license |
| M8195AU-16G |
Upgrade to 16 Gsa per module |
Software license |
| M8195AU-SEQ |
Sequencer functionality per module |
Software license |
| M8195AU-FSW |
Fast switching per module |
Software license |
| Software |
| Product numbers |
Description |
Comments |
| 81195A |
Optical Modulation Generator Software |
Free to download |
| 81195A-RSP |
Real-Time Signal Processing |
Requires 81195A |
| 81195A-OSP |
Optical Signal Properties |
| M8070A-0TP |
System Software for M8000 Series of BER Test Solutions, Transportable, Perpetual License |
|
| M8070A-0NP |
System Software for M8000 Series of BER Test Solutions, Network/Floating, Perpetual License |
|
| M8070A-1TP |
DUT Control Interface, Transportable, Perpetual License |
|
| M8085A-CT1 |
MIPI C-PHYsm Editor for M819xA AWG, transportable, perpetual License |
Requires M8070A license |
| M8085A-CN1 |
MIPI C-PHY Editor for M819xA AWG, network/floating, perpetual License |
| M8085A-CTA |
MIPI C-PHY Calibration, Conformance an Characterization Procedures for M819xA AWG, Transportable, Perpetual License |
| M8085A-CAN |
MIPI C-PHY Calibration, Conformance and Characterization Procedures for M819xA AWG, Network/Floating, Perpetual License |
| M8085A-DT1 |
MIPI D-PHYsm Editor for M819xA AWG, transportable, perpetual License |
| M8085A-DN1 |
MIPI D-PHY Editor for M819xA AWG, network/floating, perpetual License |
| M8085A-DTA |
MIPI D-PHY Calibration, Conformance and Characterization Procedures for M819xA AWG,transportable, perpetual License |
| M8085A-DNA |
MIPI D-PHY Calibration, Conformance and Characterization Procedures for M819xA AWG,Network/Floating, Perpetual License |
| N6171A-M02 |
MATLAB license (standard) |
|
| N6171A-M03 |
MATLAB license (extended) |
|
