| Configuration |
| Product numbers |
Description |
Comments |

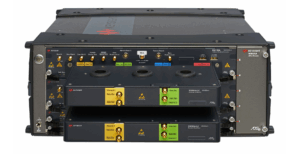

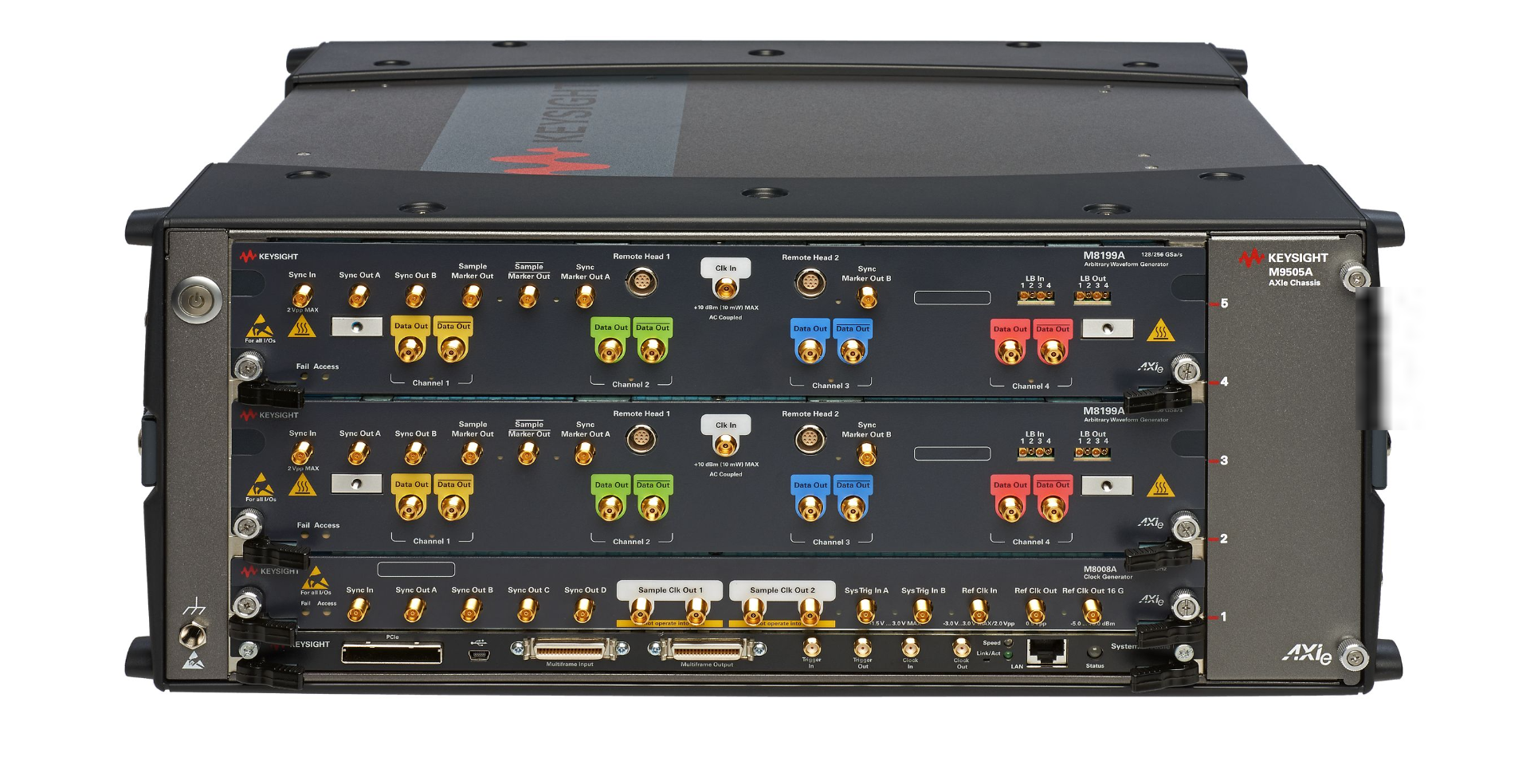

| M8100A |
AWG System – use this product number for configuring a larger AWG system, that consists of multiple AWG modules, a clock module and an AXIe chassis |
|
| M8100A-BU5 |
Pre-configured system consisting of one M9505A 5-slot AXIe Chassis with USB Option |
|
| M8100A-BU6 |
Pre-configured system consisting of one M9505A 5-slot AXIe Chassis with USB Option and one M9537A AXIe Embedded PC Controller |
|
| M8199A-002 |
Arbitrary waveform generator, 2 channels, 128 GSa/s, 2-slot AXIe module |
Must choose either 2- or 4-channel model, number of channels is software upgradable |
| M8199A-004 |
Arbitrary waveform generator, 4 channels, 128 GSa/s, 2-slot AXIe module |
| M8008A-064 |
Clock Generator 32 – 64 GHz, 1-slot AXIe module |
M8008A clock generator module or external synthesizer required to operate M8199A |
| Upgrade options |
| Product numbers |
Description |
Comments |
| M8199AU-004 |
Upgrade from 2-channels to 4-channels |
Software license only |
| General characteristics |
| Sample rate |
100 to 128 GSa/s |
| DAC resolution |
8 bits |
| Number of channels per M8195A module |
2 or 4 channels (corresponds to options 002 and 004) |
| Sample memory |
512 kSa per channel
The waveforms in each channel can have different length |
| Waveform granularity |
128 samples
The length of waveform segments must be a multiple of the granularity |
| Upgrades options for M8195A |
| Product numbers |
Description |
Comments |
| M8195AU-U02 |
Upgrade from 1 ch. to 2 ch. |
Software license |
| M8195AU-U04 |
Upgrade from 2 ch. to 4 ch.4 |
Software license |
| M8195AU-16G |
Upgrade to 16 Gsa per module |
Software license |
| M8195AU-SEQ |
Sequencer functionality per module |
Software license |
| M8195AU-FSW |
Fast switching per module |
Software license |
| Output 1, 2, 3, 4 |
| Mode |
Modul Output 1, 2, 3, 4 |
| Output type |
Single-ended or differential (terminate unused output with 50 Ohm in single ended mode) |
| Impedance |
50 Ω (nom) |
| Amplitude range (valid at 400 MHz. At higher frequencies, please consider achievable amplitudes, shown below) |
100 mVpp,se to 0.83 Vpp,se into 50 Ω
200 mVpp,diff to 1.66 Vpp,diff into 50 Ω |
| Amplitude resolution |
1 mVse (nom.) |
Amplitude accuracy
(measured peak-to-peak with 400 MHz square wave) |
±(10 mV +7.5%) (typ) |
| Voltage window |
–1 to +3.0 V depends on external termination voltage 1 |
| DC offset accuracy |
±(10 mV +2%) (typ) |
| Common Mode Voltage Accuracy |
±(25 mV +12.5%) |
| Termination voltage (VTerm) window |
–1 to +3.0 V |
| Connector type |
1.85 mm (female) |
