PSU 시리즈 CC/CV 프로그래머블 스위칭 DC 전원공급기
PSU 시리즈는 1채널 프로그래머블 스위칭 DC 전원공급기로, 각 유닛마다 최대 1560W의 전력을 제공합니다. 정격 전압 6V ~ 600V를 지원하는 10가지 모델 중에서 원하는 정격 전압에 따라 자유롭게 선택할 수 있습니다. 최대 2 유닛의 직렬 연결, 4 유닛의 병렬 연결이 가능하여 최대 600V의 출력 전압, 800A의 출력 전류, 6.24kW의 출력 전력을 지원할 수 있어서 특정한 분야에 적합합니다.
PSU 시리즈는 CV (정전압) / CC (정전류) 모드를 통해서 DUT를 보호합니다. 전력 출력이 활성화 될 때, 통상적인 전원 공급기들은 CV 모드에서 동작하여 정전용량 또는 높은 전류 부하로 인한 급격한 전류의 유입이 발생할 수 있습니다. 전류는 CC 모드에서 서서히 안정화 되겠지만, CV에서 CC 모드로 전환되는 동안 발생하는 피크 전류가 DUT를 손상시킬 위험이 있습니다. 그러나 PSU시리즈는 가동 시에도 CC 모드에서의 동작을 우선시하여 임계 전압에서도 피크 전류를 효과적으로 제한하고 급격한 전류의 유입과 그로 인한 손상으로부터 DUT를 보호합니다.
OVP와 OCP를 정격 전압/전류의 10% ~ 110% 범위에서 조절이 가능합니다. (초기 설정 값은 110% 으로 설정되어 있습니다.)
기본적으로 USB Host/Device, LAN, RS-232 & RS-485 및 Analog Control 인터페이스를 지원합니다. LabVIEW 드라이버 및 데이터 로깅, 원격 제어를 통해 출력 전압 및 전류의 외부 모니터링, 제어가 가능한 PC 소프트웨어 또한 제공됩니다.
| Specification | ||||||||||
|
PSU |
6-200 |
12.5-120 |
20-76 |
40-38 |
60-25 |
100-15 |
150-10 |
300-5 |
400-3.8 |
600-2.6 |
| Output ratings | ||||||||||
| Rated outputvoltage (*1) (V) | 6 | 12.5 | 20 | 40 | 60 | 100 | 150 | 300 | 400 | 600 |
| Rated outputcurrent (*2) (A) | 200 | 120 | 76 | 38 | 25 | 15 | 10 | 5 | 3.8 | 2.6 |
| Rated outputpower (W) | 1200 | 1500 | 1520 | 1520 | 1500 | 1500 | 1500 | 1500 | 1520 | 1560 |
| Ripple and noise(*5) | ||||||||||
| CVp-p( 10 ~20MHz) p-p (*6) (mV) | 60 | 60 | 60 | 60 | 60 | 80 | 100 | 150 | 200 | 300 |
| CVrms(5Hz ~1MHz) r.m.s. (*7) (mV) | 8 | 8 | 8 | 8 | 8 | 8 | 10 | 25 | 40 | 60 |
| CCrms(5Hz ~1MHz) r.m.s.(*12) (mA) | 400 | 240 | 152 | 95 | 75 | 45 | 35 | 25 | 17 | 12 |
| Load regulation | ||||||||||
| Voltage(*4)(mV) | 2.6 | 3.25 | 4 | 6 | 8 | 12 | 17 | 32 | 42 | 62 |
| Current(*11)(mA) | 45 | 29 | 20.2 | 12.6 | 10 | 8 | 7 | 6 | 5.76 | 5.52 |
| Line regulation | ||||||||||
| Voltage(*3)(mV) | 2.6 | 3.25 | 4 | 6 | 8 | 12 | 17 | 32 | 42 | 62 |
| Current(*3)(mA) | 22 | 14 | 9.6 | 5.8 | 4.5 | 3.5 | 3 | 2.5 | 2.38 | 2.26 |
| Analog Programming and Monitoring | ||||||||||
| Externalvoltage control output voltage | Accuracy and linearity: ±0.5% of rated output voltage. | |||||||||
| Externalvoltage control output current | Accuracy and linearity: ±1% of rated output current. | |||||||||
| Externalresistor control output voltage | Accuracy and linearity: ±1% of rated output voltage. | |||||||||
| Externalresistor control output current | Accuracy and linearity: ±1.5% of rated output current. | |||||||||
| Output voltagemonitor | Accuracy: ±1% | |||||||||
| Output currentmonitor | Accuracy: ±1% | |||||||||
| Shutdowncontrol | Turns the output off with a LOW (0V to 0.5V) or short-circuit. | |||||||||
| Output on/off control | Possible logic selections: | |||||||||
| Turn the output on using aLOW (0V to 0.5V) or short-circuit, turn the output off using a HIGH (4.5V to5V) or open-circuit. | ||||||||||
| Turn the output on using aHIGH (4.5V to 5V) or open-circuit, turn the output off using a LOW (0V to | ||||||||||
| Alarm clearcontrol | Clear alarms with a LOW (0V to 0.5V) or short-circuit. | |||||||||
| CV/CC/ALM/PWRON/OUT ON indicator | Photocoupler open collector output;Maximum voltage 30V, maximum sink current 8mA. | |||||||||
| Trigger out | Maximum low level output = 0.8V; minimumhigh level output = 2V; Maximum source current = 8mA. | |||||||||
| Trigger in | Maximum low level input voltage = 0.8V;minimum high level input votage = 2V, Maximum sink current = 8mA. | |||||||||
| Front Panel | ||||||||||
| Display, 4digits, Voltage accuracy (0.1%+mV) |
12 | 25 | 40 | 80 | 120 | 200 | 300 | 600 | 800 | 1200 |
| Current accuracy (0.2%+mA) | 600 | 360 | 228 | 114 | 75 | 45 | 30 | 15 | 11.4 | 7.8 |
| Indications | GREEN LED’s: CV, CC, V, A, VSR, ISR, DLY, RMT, LAN, M1, M2, M3,RUN,OutputON | |||||||||
| RED LED’s: ALM, ERR | ||||||||||
| Buttons | Lock/Local(Unlock), PROT(ALM_CLR),Function(M1), Test(M2), Set(M3), Shift, Output | |||||||||
| Knobs | Voltage, Current | |||||||||
| USB port | Type A USB connector | |||||||||
| Transient response time (*10) | ||||||||||
| Transientresponse time (ms) | 1.5 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Output response time | ||||||||||
| Rise time (*8) | ||||||||||
| Rated load(ms) | 80 | 80 | 80 | 80 | 80 | 150 | 150 | 150 | 200 | 250 |
| No load (ms) | 80 | 80 | 80 | 80 | 80 | 150 | 150 | 150 | 200 | 250 |
| Fall time(*9) | ||||||||||
| Rated load (ms) | 10 | 50 | 50 | 80 | 80 | 150 | 150 | 150 | 200 | 250 |
| No load (ms) | 500 | 700 | 800 | 1000 | 1100 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Programming and Measurements (RS-232/485, USB, LAN, GPIB) | ||||||||||
| Programming accuracy | ||||||||||
| Outputvoltage (0.05%+mV) | 3 | 6.25 | 10 | 20 | 30 | 50 | 75 | 150 | 200 | 300 |
| Output current(0.2%+mA) | 200 | 120 | 76 | 38 | 25 | 15 | 10 | 5 | 3.8 | 2.6 |
| Programming resolution | ||||||||||
| Output voltage(mV) | 0.2 | 0.4 | 0.7 | 1.3 | 2 | 3.4 | 5.2 | 10.2 | 13.6 | 20.4 |
| Output current(mA) | 6 | 4 | 2.5 | 1.2 | 0.8 | 0.5 | 0.34 | 0.19 | 0.13 | 0.09 |
| Measurement accuracy | ||||||||||
| Output voltage(0.1%+mV) | 6 | 12.5 | 20 | 40 | 60 | 100 | 150 | 300 | 400 | 600 |
| Output current(0.2%+mA) | 400 | 240 | 152 | 76 | 50 | 30 | 20 | 10 | 7.6 | 5.2 |
| Measurement resolution | ||||||||||
| Output voltage(mV) | 0.2 | 0.4 | 0.7 | 1.3 | 2 | 3.4 | 5.2 | 10.2 | 13.6 | 20.4 |
| Output current(mA) | 6 | 4 | 2.5 | 1.2 | 0.8 | 0.5 | 0.34 | 0.19 | 0.13 | 0.09 |
| Temperature coefficience | ||||||||||
| Voltage (ppm/℃) | 100ppm/℃ after a 30 minute warm-up | |||||||||
| Current (ppm/℃) | 100ppm/℃ after a 30 minute warm-up | |||||||||
| Remote sense compensation voltage(single wire) | ||||||||||
| voltage | 1 | 1 | 1 | 2 | 3 | 5 | 5 | 5 | 5 | 5 |
| Protection Function | ||||||||||
| Over voltage protection(OVP) | ||||||||||
| Setting range(V) | 0.6 – 6.6 | 1.25 – 13.75 | 02월 22일 | 4 – 44 | 5 – 66 | 5 – 110 | 5 – 165 | 5 – 330 | 5 – 440 | 5 – 660 |
| Settingaccuracy (mV) | 60 | 125 | 200 | 400 | 600 | 1000 | 1500 | 3000 | 4000 | 6000 |
| Over current protection(OCP) | ||||||||||
| Setting range(A) | 5 – 220 | 5 – 132 | 5 – 83.6 | 3.8 – 41.8 | 2.5 – 27.5 | 1.5 – 16.5 | 1 – 11 | 0.5 – 5.5 | 0.38 – 4.18 | 0.26 – 2.86 |
| Settingaccuracy (mA) | 4000 | 2400 | 1520 | 760 | 500 | 300 | 200 | 100 | 76 | 52 |
| Under voltage limit(UVL) | ||||||||||
| Setting range | 0 – 6.3 | 0 – 13.12 | 0 – 21 | 0 – 42 | 0 – 63 | 0 – 105 | 0 – 157.5 | 0 – 315 | 0 – 420 | 0 – 630 |
| Overtemperature protection(OHP) | Turn the output off. | |||||||||
| Incorrectsensing connection protection (SENSE) | Turn the output off. | |||||||||
| Low AC inputprotection (AC-FAIL) | Turn the output off. | |||||||||
| Shutdown (SD) | Turn the output off. | |||||||||
| Power limit(POWER LIMIT) | Over power limit. | |||||||||
| Approx. 105% of rated output power | ||||||||||
| Interface Capabilities | ||||||||||
| USB | TypeA: Host, TypeB: Slave, Speed:1.1/2.0, USB Class: CDC(Communications Device Class) | |||||||||
| LAN | MAC Address, DNS IP Address, UserPassword, Gateway IP Address, Instrument IP Address, Subnet Mask | |||||||||
| RS-232 /RS-485 | Complies with the EIA232D / EIA485Specifications | |||||||||
| GPIB (FactoryOption) | SCPI – 1993, IEEE 488.2 compliantinterface | |||||||||
| Isolated Analog Control Interface (Factory Option) | ||||||||||
| VoltageControl | Using 0-5V or 0-10V signals forprogramming and measurement | |||||||||
| CurrentControl | Using 4-20mA current signals forprogramming and measurement | |||||||||
| Environmental Conditions | ||||||||||
| Operatingtemperature | 0˚C to 50˚C | |||||||||
| Storagetemperature | -25˚C to 70˚C | |||||||||
| Operatinghumidity | 20% to 85% RH; No condensation | |||||||||
| Storagehumidity | 90% RH or less; No condensation | |||||||||
| Altitude | Maximum2000m | |||||||||
| Input Characteristics | ||||||||||
| Nominal inputrating | 100Vac to 240Vac, 50Hz to 60Hz, single phase | |||||||||
| Input voltagerange | 85Vac ~ 265Vac | |||||||||
| Inputfrequency range | 47Hz ~ 63Hz | |||||||||
| Maximum inputcurrent (A) | 21(100Vac) / 11(200Vac) | |||||||||
| Inrush current | Less than50A. | |||||||||
| Maximum inputpower (VA) | 2000 | |||||||||
| Power factor | 0.99 / 0.98 | |||||||||
| Efficiency(*13) (100Vac / 200Vac) (%) | 77 / 79 | 82 / 85 | 83 / 86 | 84 / 87 | 84 / 87 | 84 / 87 | 84 / 87 | 84 / 87 | 84 / 87 | 84 / 87 |
| Hold-up time | 20ms or greater | |||||||||
| General | ||||||||||
| Weight | Less than 8.7kg (main unit only) | |||||||||
| Dimensions | 423(W)×43.6(H)×447.2(D) mm | |||||||||
| Cooling | Forced air cooling by internal fan. | |||||||||
| EMC | Complies with the European EMC directive89/336/EEC for Class A test and measurement products. | |||||||||
| Safety | Complies with the European Low VoltageDirective 73/23/EEC and carries the CE-marking. | |||||||||
| Withstand voltage | AC to Chassis : 1500Vac / 1min | |||||||||
| AC to Output terminal :3000Vac / 1min | ||||||||||
| Vout≦150V | ||||||||||
| Output terminal to Chassis: 1000Vdc / 1min | ||||||||||
| 150≦600<> | ||||||||||
| Output terminal to Chassis: 1500Vdc / 1min | ||||||||||
| Insulationresistances | Chassis and output terminal; chassis andAC input; AC input and output terminal: 100MΩ or more (DC 1000V) | |||||||||
| 기본 액세서리 | ||||
| CD – ROM (사용 설명서, 프로그래밍 매뉴얼) ×1 | 출력 단자 덮개 ×1 | |||
| 아날로그 커넥터 플러그 키트 ×1 | 출력 단자 M8 볼트 세트 (6V ~ 60V 모델) | |||
| 입력 단자 덮개 ×1 | 1U 핸들 (RoHS) | |||
| 1U 브라켓 (좌측, RoHS) | 1U 브라켓 (우측, RoHS) | |||
| 옵션 액세서리 (공장 설치) | ||||
| PSU – 001 | 전면 패널 필터 키트 | PSU – GPIB | GPIB 인터페이스 카드 | |
| PSU – ISO – I | 절연 전류 원격 제어 카드 | PSU – ISO – V | 절연 전압 원격 제어 카드 | |
| 옵션 액세서리 | ||||

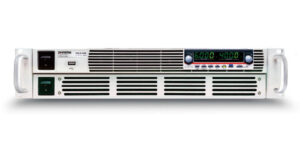

| PSU – 01A | 2개의 PSU 유닛을 세로 방향으로 연결하기 위한 2U 크기 핸들 ×2, 연결판 ×2 | |||
| PSU – 01B | 2개 유닛의 병렬 동작을 위한 버스 바 (60V 이하의 모델에만 적용됩니다.) | |||
| PSU – 01C | 2개 유닛의 병렬 동작을 위한 케이블 | |||

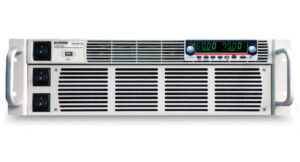

| PSU – 02A | 3개의 PSU 유닛을 세로 방향으로 연결하기 위한 3U 크기 핸들 ×2, 연결판 ×2 | |||
| PSU – 02B | 3개 유닛의 병렬 동작을 위한 버스 바 (60V 이하의 모델에만 적용됩니다.) | |||
| PSU – 02C | 3개 유닛의 병렬 동작을 위한 케이블 | |||

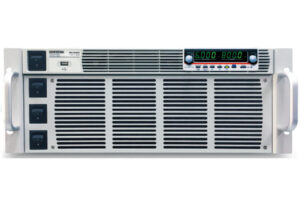

| PSU – 03A | 4개의 PSU 유닛을 세로 방향으로 연결하기 위한 4U 크기 핸들 ×2, 연결판 ×2 | |||
| PSU – 03B | 4개 유닛의 병렬 동작을 위한 버스 바 (60V 이하의 모델에만 적용됩니다.) | |||
| PSU – 03C | 4개 유닛의 병렬 동작을 위한 케이블 | |||
| PSU – 232 | RS-232 케이블과 DB9 연결 키트 | PSU – 485 | RS-485 케이블과 DB9 연결 키트 | |
| GRM – 001 | 슬라이드 브라켓 2pcs/세트 | GPW – 001 | UL/CSA 전원 코드, 3m | |
| GPW – 002 | VDE 전원 코드, 3m | GPW – 003 | PSE 전원 코드, 3m | |
| GTL – 246 | USB 케이블, USB 2.0 A-B 타입 케이블, 1.2m, 4P | GTL – 259 | RS-232 케이블 (DB9F ~ RJ45), 2m, PFR OPT | |
| GTL – 260 | RS-485 케이블 (DB9F ~ RJ45), 2m, PFR/PSU OPT | GTL – 261 | 직렬 Master 케이블 + 단자, 0.5m, PFR/PSU | |
| GTL – 262 | 직렬 Slave 케이블, 0.5m, PFR OPT | |||
| 무료 다운로드 | ||||
| PC 제어 소프트웨어 (데이터 로깅 및 원격 제어 가능) | USB 드라이버, LabVIEW 드라이버 | |||
