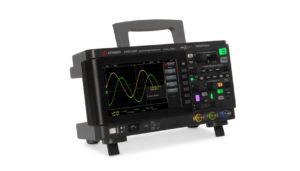

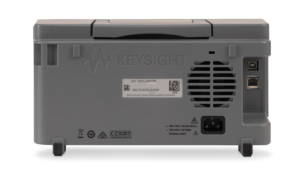

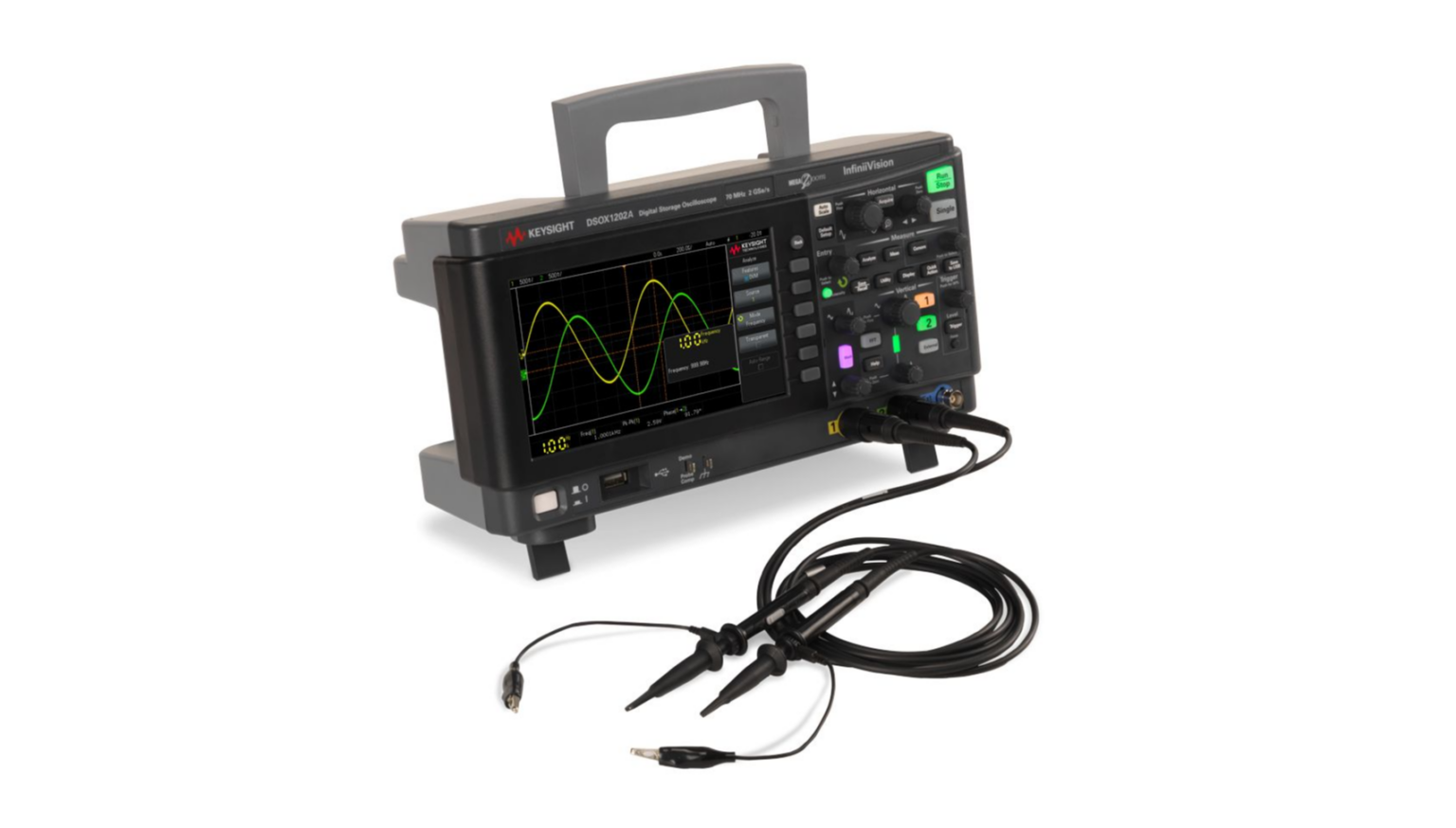

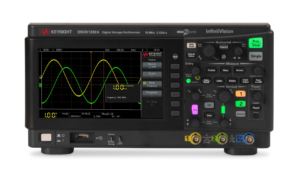

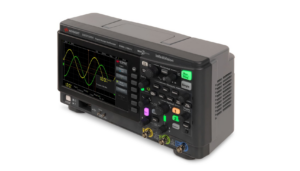

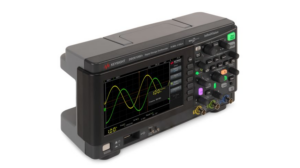

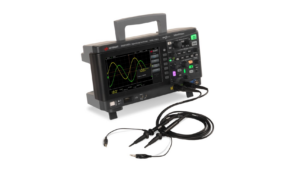

InfiniiVision 1000 X-시리즈 오실로스코프

InfiniiVision 1000 X-시리즈 오실로스코프

  • 대역폭 : 50MHz ~ 200MHz
  • 채널 : 2채널 / 4채널
  • 샘플링속도 : 2GSa/s
  • 메모리길이 : 2Mpts/ch
  • 파형 업데이트속도 : 200,000 wfms/s
카타로그
매뉴얼
견적요청

Bandwidth

50MHz ~ 200MHz

ch

2채널 / 4채널

Sample Rate

2GSa/s

Memory Depth

2Mpts/ch

Waveforme Update

200,000 wfms/s

주요특징
  • 70/100/200 MHz(100 및 200 MHz의 경우 추가 옵션 필요)
  • 2 GSa/s 샘플링 속도
  • 2M 메모리
  • 마스크 테스트, Math, FFT, 직렬 프로토콜 분석 포함
  • 내장된 교육 신호와 도움말 지원으로 편리한 사용법 제
  • 초당 200,000회 업데이트 속도
제품사양
제품 DSOX1202A
70/100/200 MHz, 2 Ch		 DSOX1202G
70/100 MHz, 2 Ch with Function Generator		 DSOX1204A

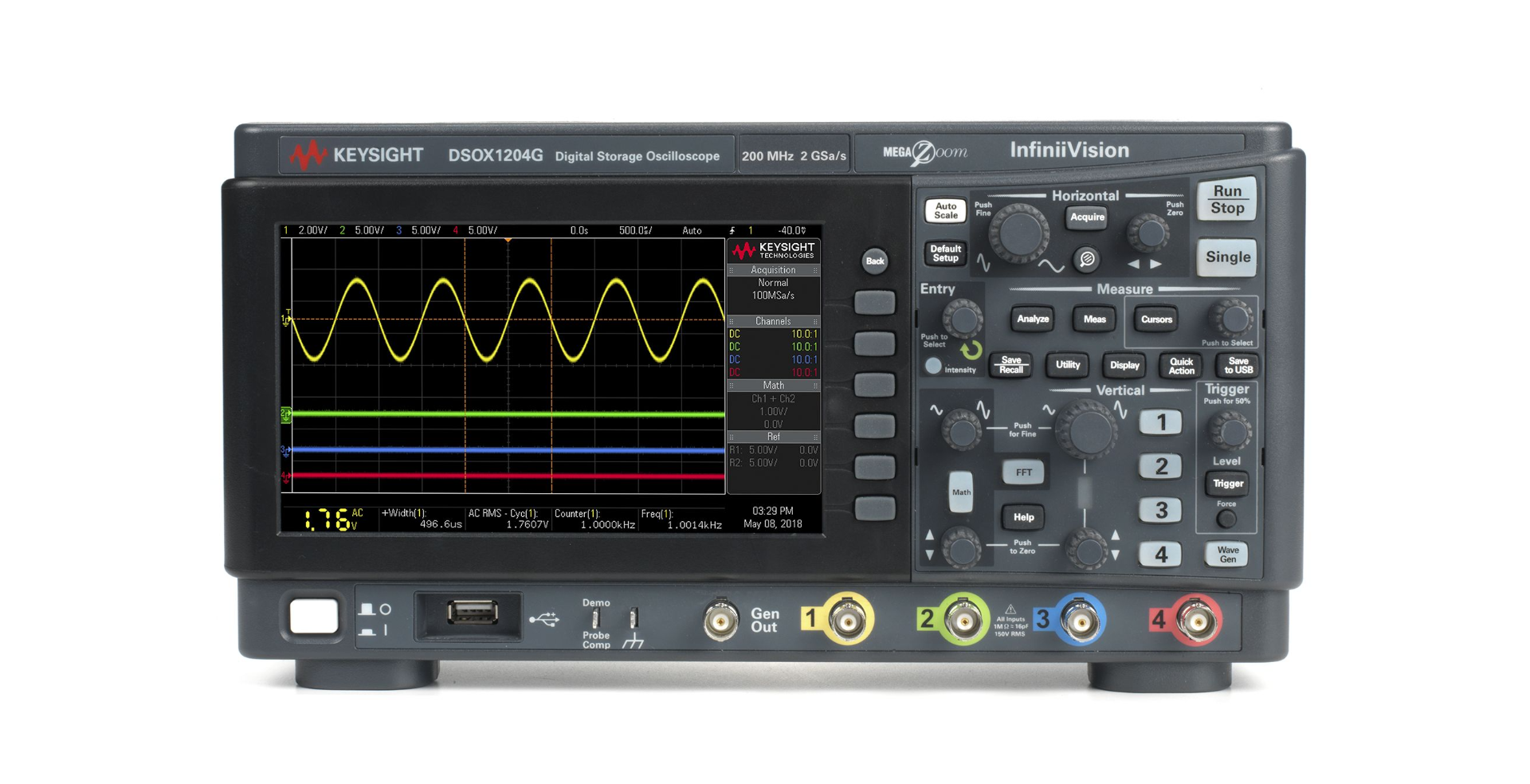

70/100/200 MHz, 4 Ch		 DSOX1204G
70/100/200 MHz, 4 Ch with Function Generator
Analog Channels 2 4
External trigger Front panel input
(Displayable as a 3rd digital channel)		 Back panel input
(not displayed)
Bandwidth 70 MHz (base) 70 MHz (base)
100 MHz(Opt. D1202BW1A)
200 MHz(Opt. D1202BW2A)		 100 MHz(Opt. D1200BW1A)
200 MHz(Opt. D1200BW2A)
Max. Sample Rate 2 GSa/s
Max. Memory Depth 2 Mpts
Segmented Memory Standard
Mask/limit testing Standard
WaveGen N/A 20-MHz function generator
(includes Bode plot test)		 N/A 20-MHz function generator
(includes Bode plot test)
Serial protocol analysis Standard:
– I²C, SPI, UART/RS-232, CAN, LIN
Waveform math Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter
Display 7-inch TFT LCD WVGA
Waveform update rate 200,000 waveforms per second
Connectivity USB 2.0 (host and device)
LAN
제품 EDUX1052A
50 MHz, 2 Ch		 EDUX1052G
50 MHz, 2 Ch with Function Generator
Analog Channels 2 + 1 (ext. trigger viewable as digital channel)
External trigger 1 (or 3rd digital channel)
Bandwidth 50 MHz
Max. Sample Rate 1 GSa/s
Max. Memory Depth 200 kpts
Segmented Memory N/A
Mask/limit testing N/A
WaveGen N/A 20-MHz function generator
(includes Bode plot test)
Serial protocol analysis Standard:
– I²C, UART/RS-232
Waveform math Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter
Display 7-inch TFT LCD WVGA
Waveform update rate 100,000 waveforms per second
Connectivity USB 2.0 (host and device)
Bandwidth Upgrades
Description Model number
Upgrade bandwidth from 70 to 100 MHz upgrade
(Compatible with DSOX1204A or DSOX1204G)		 D1200BW1A
Upgrade bandwidth from 70 to 200 MHz upgrade
(Compatible with DSOX1204A or DSOX1204G)		 D1200BW2A
Upgrade bandwidth from 100 to 200 MHz upgrade
(Compatible with DSOX1204A or DSOX1204G)		 D1200BW3A
Upgrade bandwidth from 70 to 100 MHz upgrade
(Compatible with DSOX1202A or DSOX1202G)		 D1202BW1A
Upgrade bandwidth from 70 to 200 MHz upgrade
(Compatible with DSOX1202A or DSOX1202G)		 D1202BW2A
Upgrade bandwidth from 100 to 200 MHz upgrade
(Compatible with DSOX1202A or DSOX1202G)		 D1202BW3A
액세서리
Probes and Accessories
Model number Description
N2142A 1:1, 10:1 switchable 75 MHz
N2140A 1:1, 10:1 switchable 200 MHz
N2738A Soft carrying case for 1000 X-Series oscilloscopes
N2133A Rackmount kit for 1000 X-Series oscilloscopes
BV0004B BenchVue oscilloscope application
N7040A 23 MHz, 3 kA, AC current probe
N7041A 30 MHz, 600A, AC current probe
N7042A 30 MHz, 300A, AC current probe
N2842A 10:1, 300 MHz passive probe
N2889A 1:1, 10:1 switchable 350 MHz passive probe
10070D 1:1, 20 MHz passive probe
N2870A 1:1, 35 MHz passive probe
N7007A 10:1 400 MHz extreme temperature passive probe
10076C 100:1 500 MHz 3.7 KV high voltage passive pr
N2791A 25 MHz, 10:1, 100:1 switchable high voltage up to ± 700V
N2891A 70 MHz, 100:1, 1000:1 switchable high voltage up to ± 700
1146B 100 kHz, 100A, AC/DC current probe
N2780B 2 MHz, 500A, AC/DC current probe (with N2779A power supply)
N2781B 10 MHz, 150A, AC/DC current probe (with N2779A power supply)
N2782B 50 MHz, 30A, AC/DC current probe (with N2779A power supply)
N2783B 100 MHz, 30A, AC/DC current probe (with N2779A power supply)
